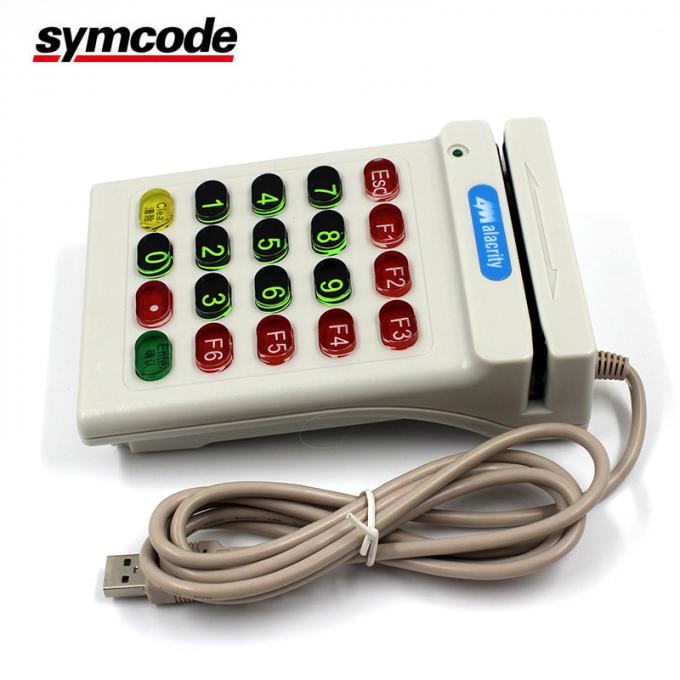

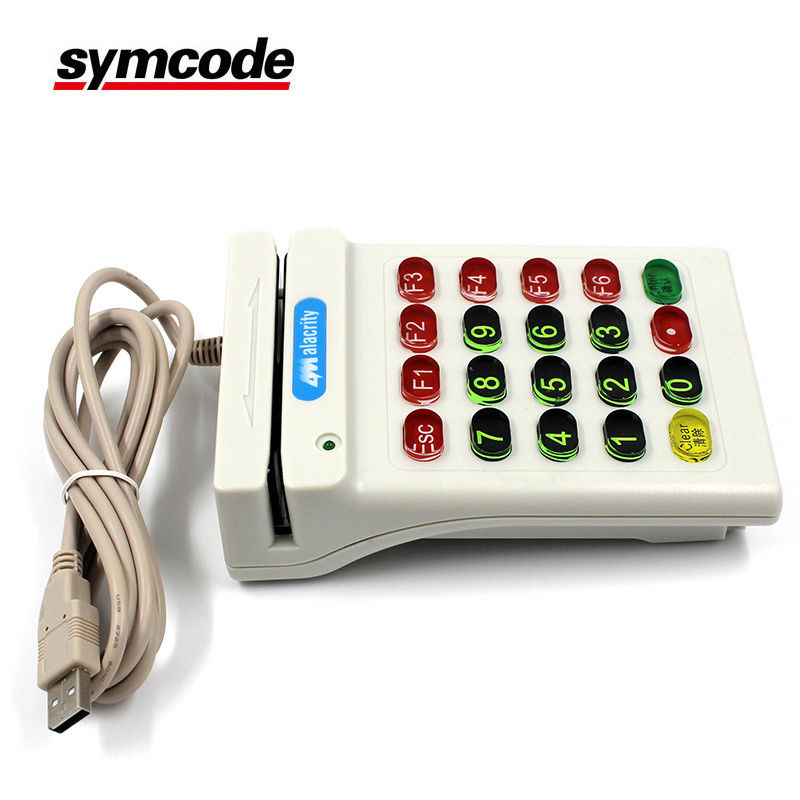

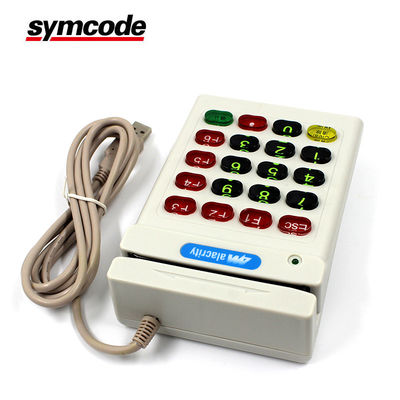

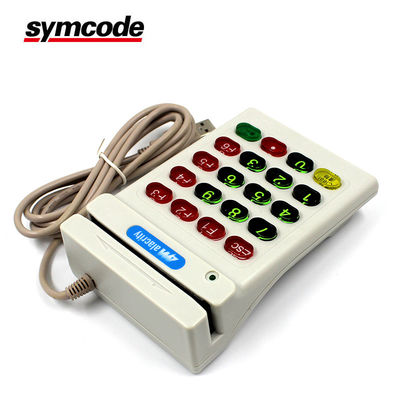

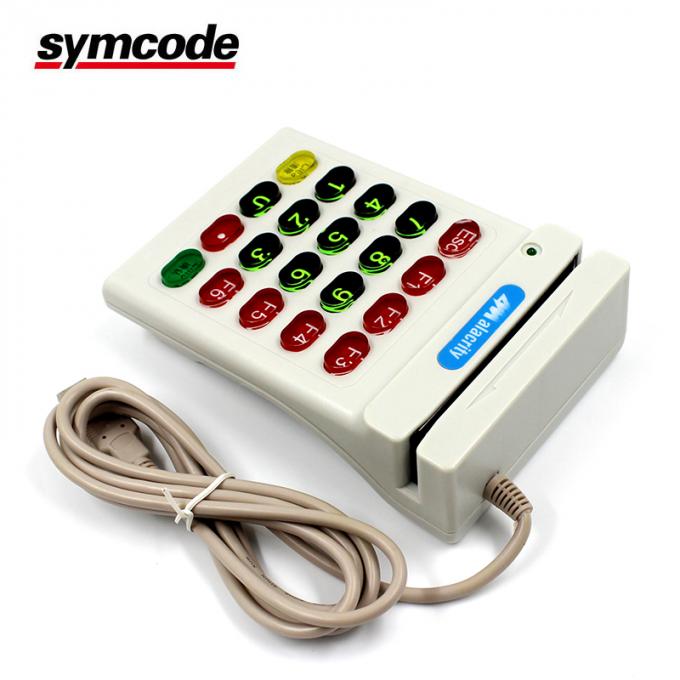

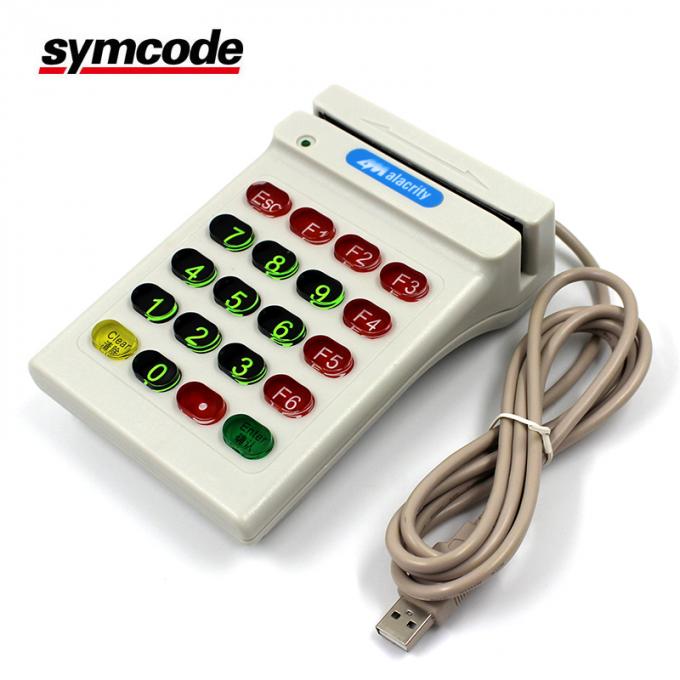

EMV Magnetic Stripe Reader / Swipe Card Reader 600mA Plus For Each Writing Track

Easy Programmable Hi/Lo-co USB EMV Magnetic stripe Card Reader

Specification

• Technic Details: Recording Density: 201 BPI, 75 BPI or 210 BPI
• Recording Capacity: 79 Characters, 40 Characters or 107 Characters
• Power Supply: +5V DC ±5%
• Power Consumption: 65mA(max.)
• Head Function: Read only 1.5mm
• Card Thickness: Plastic 0.76 ± 0.08mm
• Operation Speed: 10- 150cm/sec
• Error Rate: Less than 0.5%
• Interface: PS/2, RS232 or USB is available
• Dimension: 90 x 26 x 28mm
• Operation Locus: Indoors only
• Cable Length: 150cm
• Lifetime of Header: 800,000 card passes (1 pass : one swipe)
• Weight: Appro. 100g

Features:
Small footprint to fit in tight places
Reads up to 3 tracks of information, track 1, track 2 and track 3
Bi-directional swipe reading
Hico/Loco Cards all compatible
Reliable for over 1,000,000 card swipes
Threaded inserts for mounting
Reads ISO7811, AAMVA, CA DMV & most magnetic card data formats
LED indicator (Green light blinks while card is swiped.)

Specifications:
Size: 90x 27 x 29 mm( L x W x H)
Color: black
Interface: USB emulation Keyboard
Casing Material: ABS
Operating Temperature: -10℃ to +60℃
Relative Humidity: 90% non-condensing
Works with: Windows, Mac OS, and many other USB capable operating systems.

How to use:
1.Connect the reader to a computer USB port.
2.Run a text editor, notepad or other program with an input box.
3.Swipe a magnetic card through the reader.
4.The card is read and card data shows in the box.

Q: What’s the lead time? (How long do you need to prepare my goods?
A: 4-7days for sample orders. 20-40days for mass production orders (based on different quantities).

Q: How will you deliver?
A: Decided by you. By air or by sea. In the mean time, we cooperate with international expresses
such as DHL, UPS, FedEx, TNT to enable our customers get their goods rapidly.

Q: How long do I need to wait before my goods arrive?
A: 7-9 days for air transportation, 4-6 days for international express. 20-40 days for sea transportation.

Q: How long can I use before I need to recharge the battery?
A: Working time: up to 9 hours for continual scanning;
Standby time: Up to 120 hours (5 days);
Times will vary based on user settings, feature use and network configuration.

Q: What is the cost for your OEM service?
A: No need to pay extra for our OEM service if order qty over 1000pcs. Further discussion of other quantity.

Q: Can you offer ODM service?
A: Yes.We have more than 100 R&D staffs. And we have offered ODM services to top brands in the world.

Q: What payment methods do you accept?
A: T/T, Western Union, Paypal, etc.

Q: What is your warranty?
A: 12 months for main device, 6 months for accessories.
