Place of Origin: | China |
Brand Name: | symcode |
Certification: | CE / RoHS / FCC |
Model Number: | MSR-002 |
Minimum Order Quantity: | 1pcs |
---|---|
Packaging Details: | Carton box |
Delivery Time: | Sample order:1-3 days / Bulk order:7-15days |
Payment Terms: | T/T, Western Union, D/P, D/A, L/C |
Supply Ability: | 50,000pcs per month |
Type: | SM Card | All Compatible: | 300~4000 Oe |
---|---|---|---|
Interface: | USB | Product Dimensions(LxWxH): | 29x12x11cm ; 862 G |
Consumption Typical: | 350mA Max. 600mA Plus For Each Writing Track | Power Requirements: | +24VDC +/- 5% |
Swipe Speed: | 3 ~ 60 Inches Per Second | Magnetic Head: | Double Magnetic Head |
Dielectric Strength: | 500 VDC For 1 Minute | Mounting: | Portable Or Any Surfaces |
Recording Method: | Two-frequency Coherent Phase | Operating Life: | Approx. 500,000 Passes |
High Light: | magstripe card reader,credit card reader |

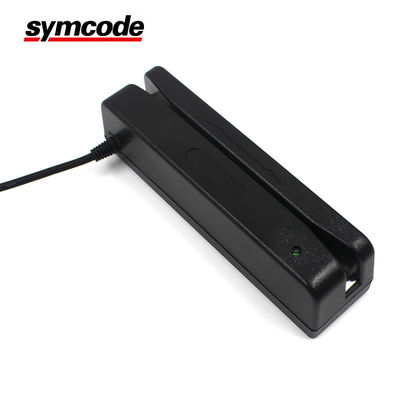

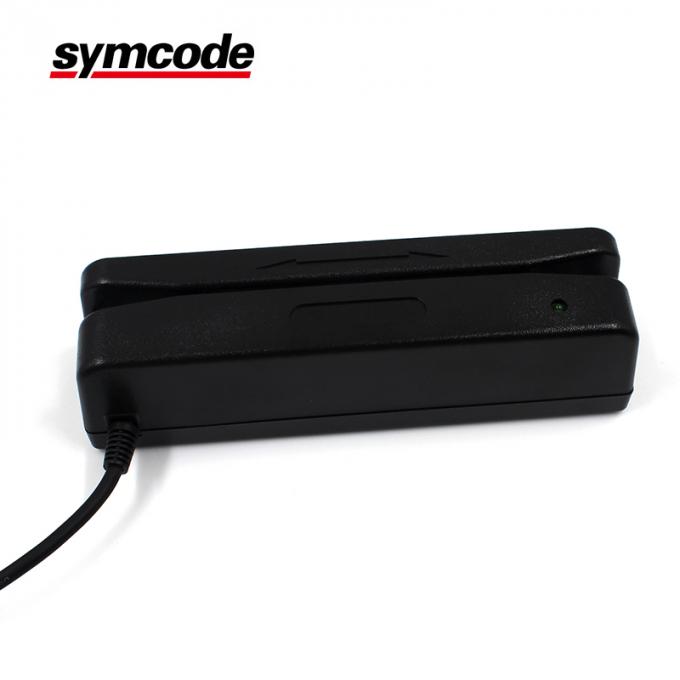

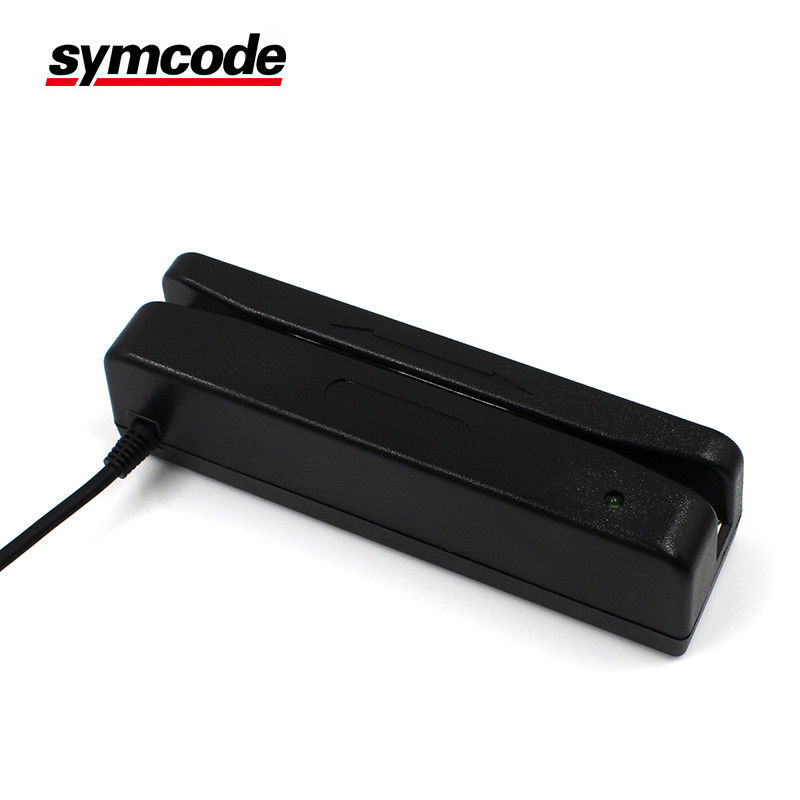

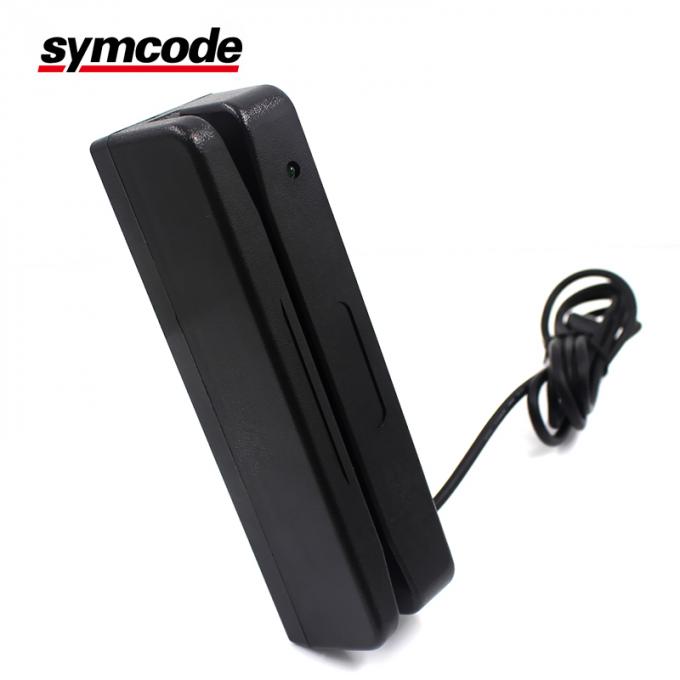

Symcode USB Magnetic Stripe Swipe Credit Card Reader Writer Encoder
Specifications:
Track 1 | Track 2 | ||
Recording density | 210 BPI | 75 BPI | |
Capacity | 79 characters (7 bit code) |
40 characters (5 bit code) |
|
Power | Power supplied by the computer | ||
Card operation speed | 10 ~ 180 cm/sec | ||
Decoding method | F/2F | ||
Operation temperature | -10 ~ 50°c | ||
Life time of head | Approx. 300,000 passes | ||
Baud rate | 2400 bps,9600 bps,19200 bps | ||
Card standard | ISO 7811 | ||
Cable length | 120 cm | ||
Dimension (L*D*H) |
90*28*27 mm |
