Place of Origin: | China |
Brand Name: | symcode |
Certification: | CE / RoHS / FCC |
Model Number: | MJ-4115 |
Minimum Order Quantity: | 1pcs |
---|---|
Packaging Details: | Carton box,300pcs/ctn,7.9KGs,42x38x38cm |
Delivery Time: | Sample order:1-3 days / Bulk order:7-15days |
Payment Terms: | T/T, Western Union, L/C, D/A, D/P, , MoneyGram |
Supply Ability: | 50,000pcs per month |
Application: | Shop | Decode: | 1D |
---|---|---|---|
Light Source: | 650 Nm Visible Laser Diode | Interface: | USB/RS232/KB |
Precision: | ≥3MIL | Print Contrast:: | 30%min |
Scan Mode: | Support Autosense / Support Commands | Alert Mode: | Indicator And Buzzer |
Trigger Mode: | Manual, Consecutive Scanning | Humidity: | 5%~90% (Non-condensing) |
Shield Materials: | ABS+PC | AngleTolerance: | Skew ±60°; Pitch ±65°; Roll ±42° |
High Light: | laser barcode scanner,symcode barcode scanner |

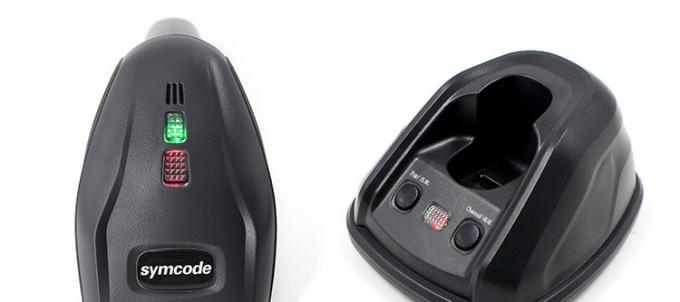

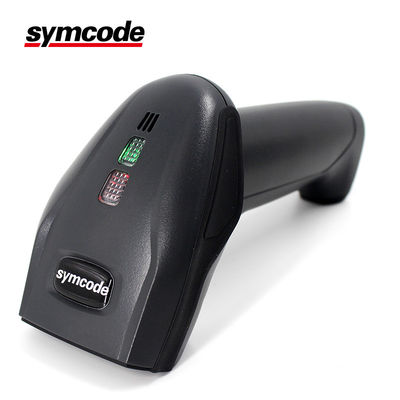

Symcode MJ-4115 Long Distance Transmission Handheld
1D Laser Wireless Barcode Scanner
Main Features:
● With mini wireless receiver and storage function, convenient for supermarket, entertainment venues, etc
● Dual standby, low power consumption, energy saving
● Advanced design of human engineering, reading or not-reading is indicated by LED light and buzzer
● Support 25 different international language settings
● Have super memory storage of 100,000 barcodes
● Super transmission distance, 400m effective distance ( 100m indoor distance)
● Clients can use quickly with its simple structure design without any complexity
Specifications:
● Trigger mode: Button, Auto-Induction
● Wireless range: 400m (depend on the environment)
● Barcode type: Standard 1D Barcode
● Scan model: Single scan
● Length of the cable: 1.5m
● Indication: LED, Buzzer
● Lifetime: 8,000,000 times
Type | 433Mhz wireless barcode scanner |
Input Voltage | 5V DC, ±0.25V |
DC Current | 25mA(operating); 95mA(Max peak); 250mA(charging) |
Light Source | 650nm visible Laser diode (1D) |
Laser Safety Level | China GB Class II, EN60825-1 |
Decoding speed | 150 times/second |
AngleTolerance | Skew ±60°; Pitch ±65°; Roll ±42° |
Resolution | 4mil |
Wireless Contact Radius Limit | 300 meters |
1D Code Types | UPC-A, UPC-E,EAN-8, EAN-13, EAN-ISBN/ISSN, Code 39, Code 39(Full ASCII), Industrial 2 of 5,Interleave 2 of 5, Matrix 2 of 5,Codabar, Code 128,Code 93,Code 11 MSI/Plessey, UK/Plessey, UCC/EAN 128, China Post Code,GS1 Data Bar (formerly RSS) etc. |
Alert Mode | Indicator and Buzzer |
Interfaces | USB, RS232, PS2 |
Trigger mode | Manual, Consecutive Scanning |
Mode setting | Set by scanning functional barcodes or by cradle keys |
Temperature | -18°C ~55°C (working); -40°C ~60°C (storage) |
Humidity | 5%~90% (Non-condensing) |
Shield Materials | ABS+PC |
Shock proof | withstand multiple drops from 1.8m to concrete surface |
Dust & Water proof | IP52 |

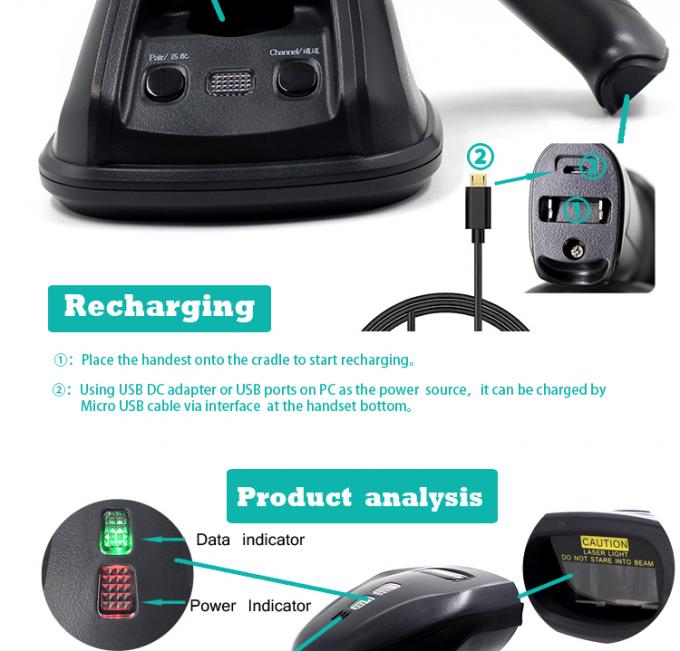

Battery Performance | it can work 45hrs consecutively or can last 1 week at normal working time after a 4hrs power charge (full) |
Weight | 129g |
