| Place of Origin: | China |
| Brand Name: | symcode |
| Certification: | CE / RoHS / FCC CCC |
| Model Number: | MJ-T58 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | Standard package |
| Delivery Time: | Sample order:1-3 days / Bulk order:7-15days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 15,000pcs per month |
| Meas: | 49*42*40(cm) | Interface: | USB RS232 LAN |
|---|---|---|---|
| Printing Method: | Direct Thermal | Type: | 58mm Thermal Receipt Printer |
| Printing Speed:: | 90mm/sec | Resolution: | 203dpi(8dots/mm) |
| Printing Paper: | 57.5±0.5mm×φ58mm | Adapter Voltage: | DC 9V/3A |
| Data Buffer: | UP To 20K Bytes | Roll Diameter: | φ≤50mm |
| High Light: | bluetooth thermal printer,receipt pos printer |
||

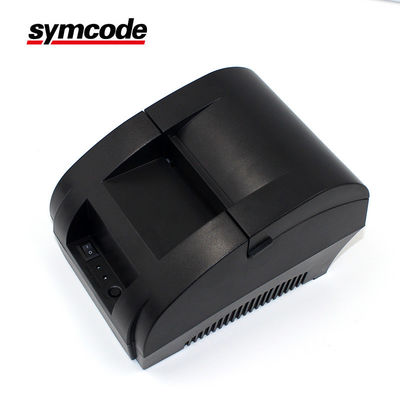

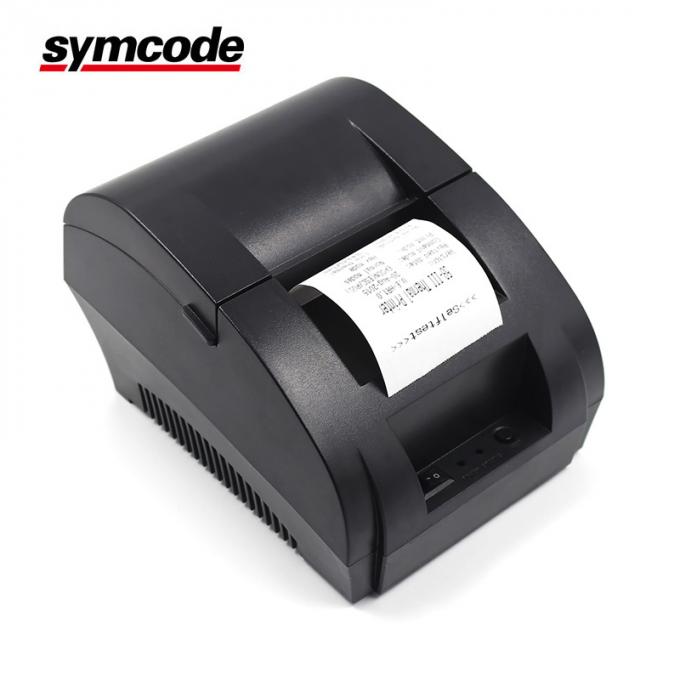

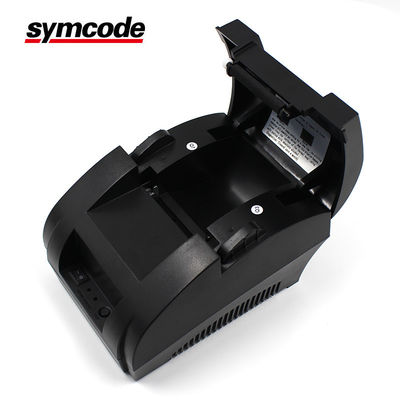

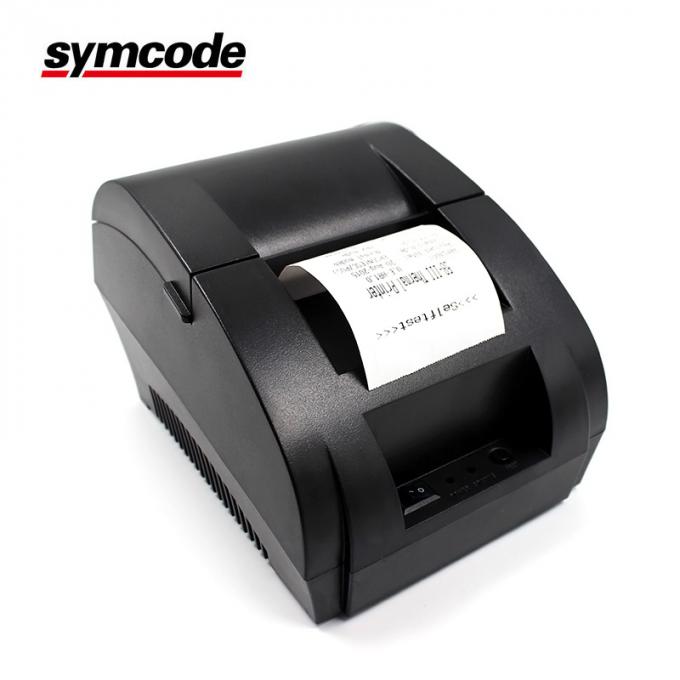

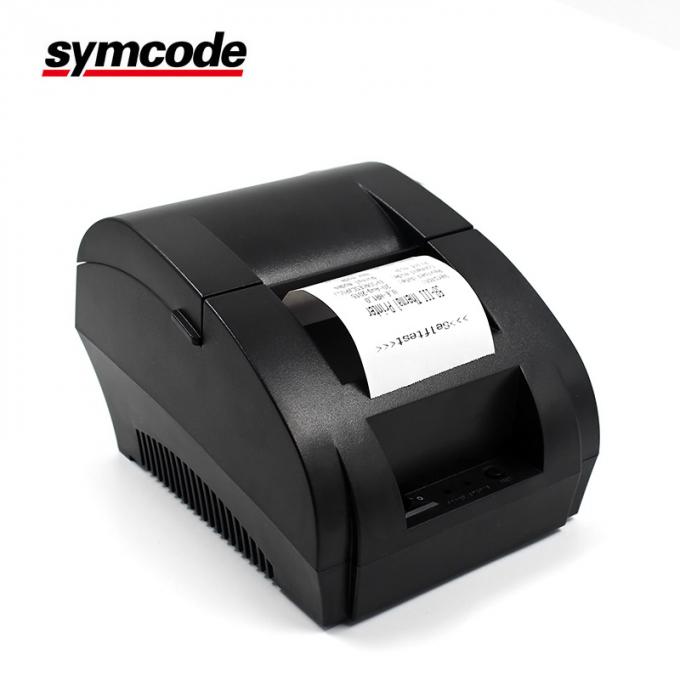

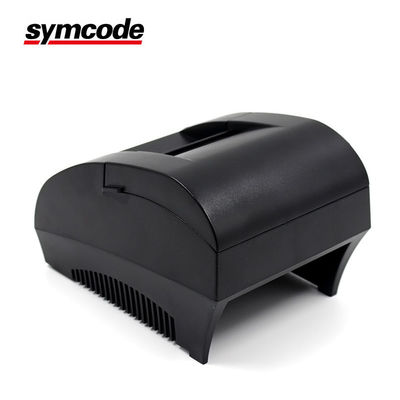

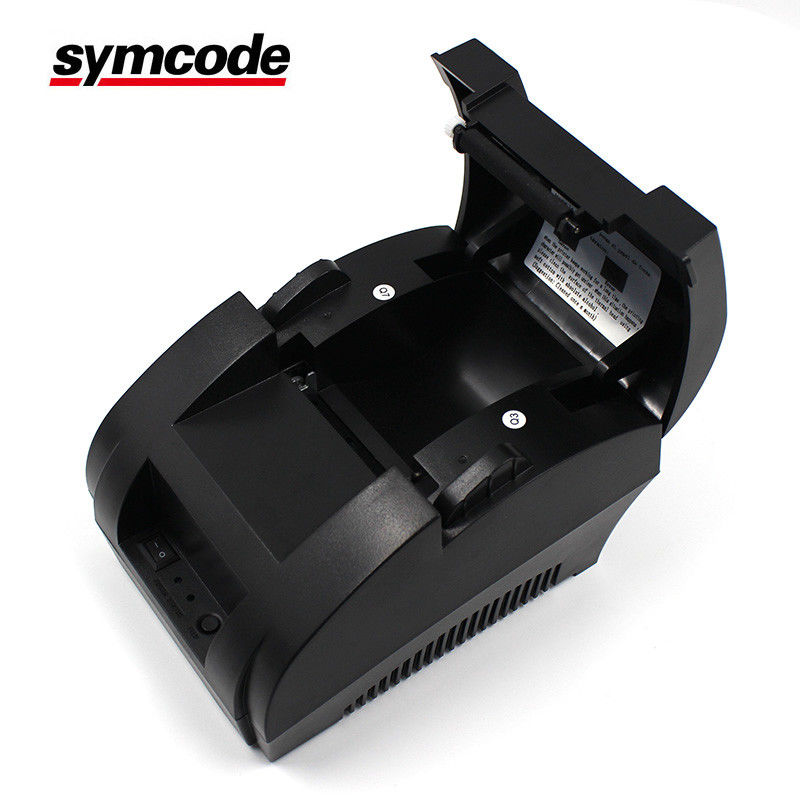

Popular Thermal Printer POS Printer 58 Feed Function Printer MJ-T58
Application:
Thermal printers are still commonly used in seafloor exploration and engineering geology due to their portability, speed, and ability to create continuous reels or sheets. Typically, thermal printers found in offshore applications are used to print realtime records of side scan sonar and sub-seafloor seismic imagery. In data processing, thermal printers are sometimes used to quickly create hard copies of continuous seismic or hydrographic records stored in digital SEG Y or XTF form.
The Printer, released in 1998, was a small thermal printer used to print out certain elements from some Game Boy games.
| Specifications | ||
| Interfaces | USB | |
| Print Comand | ESC/POS | |
| Print Method | Thermal Line Printing | |
| Pirnt Speed | 70mm/s | |
| Resolution | 203DPI (8dot/mm) | |
| No. of Total Dots | 384 dots/Line | |
| Print Width | 48mm | |
| Character Size | 1.5 x 3.0mm (W x H)/3.0 x 3.0mm (W x H) | |
| Print Font | 12 x 24; 24x 24 | |
| Character Set | Alphanumeric /Chinese Kanji | |
| Data Buffer | UP to 20K bytes | |
| Compatible OS | Window Systems; Linux Operate Systems | |
| Paper | ||
| Type | Roll Paper | |
| Width | 58.0±0.1mm | |
| Roll Diameter | φ≤50mm | |
| Paper Thickness | 0.06-0.08mm | |
| Electrical | ||
| Adapter Voltage | DC 9V/3A | |
| Cash Drawer Control | DC 12V/1A | |
| Print Head | Reliability | |
| Print Reliability | 100km | |
| Physical | ||
| Dimension | 17.5*13*11(cm) | |
| Unit Weight | 0.85kg ( including accessories: manual, cable, test paper) | |
| Color | Black, white | |
| Pieces Per CTN | 18pieces | |
| CTN Dimension | 49*42*40(cm) | |
| Carton Weight | 16kg | |
