Place of Origin: | China |
Brand Name: | symcode |
Certification: | CE / RoHS / FCC |
Model Number: | MJ-T58 |
Minimum Order Quantity: | 1pcs |
---|---|
Packaging Details: | Carton box |
Delivery Time: | Sample order:1-3 days / Bulk order:7-15days |
Payment Terms: | T/T, Western Union, D/P, T/T, L/C |
Supply Ability: | 50,000pcs per month |
Reading Mode: | CMOS | Interface: | Serial/USB/LAN |
---|---|---|---|
Printing Method: | Direct Thermal | Roll Diameter: | φ≤50mm |
Paper Thickness: | 0.06-0.08mm | Character Size: | 1.5 X 3.0mm (W X H)/3.0 X 3.0mm (W X H) |
Compatible OS: | Window Systems; Linux Operate Systems; Android & IOS Operate Systems | Dimension: | 19*13.2*11.9(cm) |
Temperature: | Working: 0 To 45 Degrees | Unit Weight: | 1.2kg ( Including Accessories: Manual, Cable, Test Paper) |
Cash Drawer Control: | DC 12V/1A | Humidity: | Working: 10%-80% |
High Light: | bluetooth thermal printer,portable receipt printer |

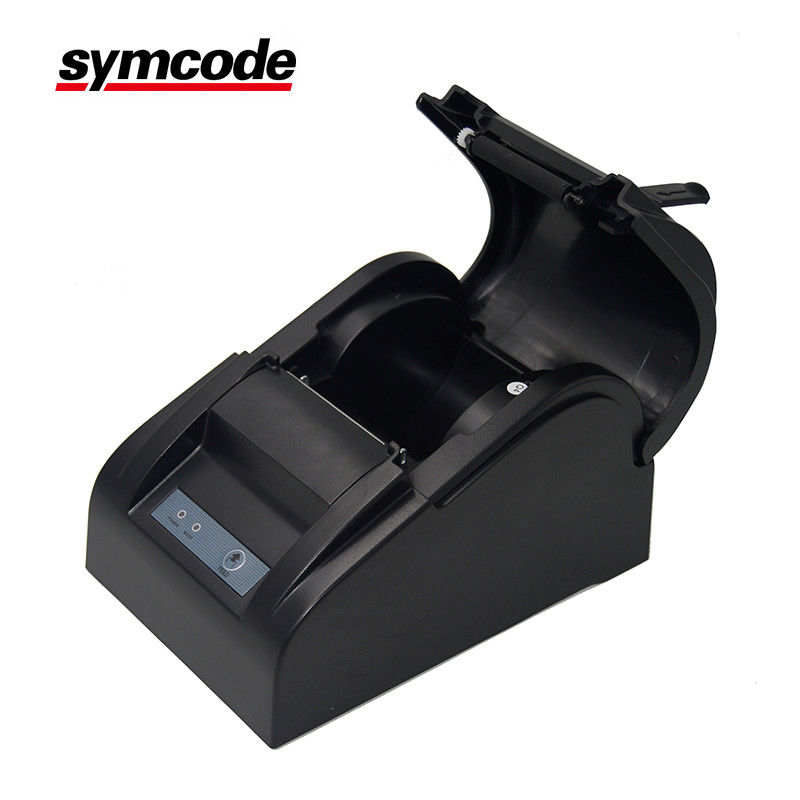

USB Thermal Receipt Printer 58mm High Speed Printing Compatible
with ESC / POS Print Commands Set
NOTE:
1.CAN NOT work on Mac IOS/ANDROID /SQUARE SYSTEM, CAN NOT SUPPORT BLUETOOTH DEVICES.
2.Supports Windows2000/Windows XP/Windows2003/Windows Vista/Windows 7
3.If you are using win8 or LINUX system please kindly contact us for installation instruction before purchasing.

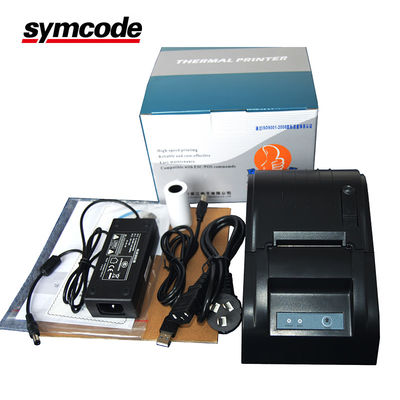

Package:
1 x USB Receipt Printer
1 x Power Adaptor
1 x Paper Roll
1 x USB Cable
1 x Use Manual
1 x Drive CD
Specifications | ||
Interfaces | Ethernet / USB / Parallel / Serial / Bluetooth (optional) | |
Print Comand | ESC/POS | |
Print Method | Thermal Line Printing | |
Print Speed | 70mm/s | |
Resolution | 203DPI (8dot/mm) | |
No. of Total Dots | 384 dots/Line | |
Print Width | 48mm | |
Character Size | 1.5 x 3.0mm (W x H)/3.0 x 3.0mm (W x H) | |
Print Font | 12 x 24; 24x 24 | |
Character Set | Alphanumeric /Chinese Kanji | |
Data Buffer | UP to 20K bytes | |
Compatible OS | Window Systems; Linux Operate Systems; Android & IOS Operate Systems | |
Paper | ||
Type | Roll Paper | |
Width | 58.0±0.1mm | |
Roll Diameter | φ≤50mm | |
Paper Thickness | 0.06-0.08mm | |
Electrical | ||
Adapter Voltage | DC 9V/3A | |
Cash Drawer Control | DC 12V/1A | |
Print Head | Reliability | |
Print Reliability | 100km |
Environmental | ||
Temperature | Working: 0 to 45 Degrees | |
Humidity | Working: 10%-80% | |
Warranty | 12 months at least | |
Certificates | CE& FCC ROHS / ISO9001:2008 |
