Place of Origin: | China |
Brand Name: | symcode |
Certification: | CE / RoHS / FCC |
Model Number: | MJ-T80 |
Minimum Order Quantity: | 1pcs |
---|---|
Packaging Details: | Standard package |
Delivery Time: | Sample order:1-3 days / Bulk order:7-15days |
Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
Supply Ability: | 15,000pcs per month |
Meas: | 196.4mm×145mm×152mm(W×L×H) | Interface: | "Standard: Cash Box Interface / USB Optional: Serial / Parallel / Ethernet Port / Bluetooth / Wi-Fi And Other " |
---|---|---|---|
Printing Method: | Direct Thermal | Type: | 80mm Thermal Printer |
Printing Speed:: | 300mm/sec | Diver: | Windows(WIN7/WIN8/WIN10/Vista/XP/2000) Ubuntu 12.04 32/64 Ubuntu 14.04 32/64 |
Cutter Type: | Manual Tearing / Auto | Resolution: | 203DPI,8 Dots/mm |
Paper Thickness: | 0.056~0.1mm | Model: | MJ-T80 |
FLASH: | 4MB(POS80x/POS81x/POS82x)/ 8MB(POS83x) | RAM: | 4MB(POS80x/POS81x/POS82x) /8MB(POS83x) |
High Light: | bluetooth thermal printer,portable receipt printer |

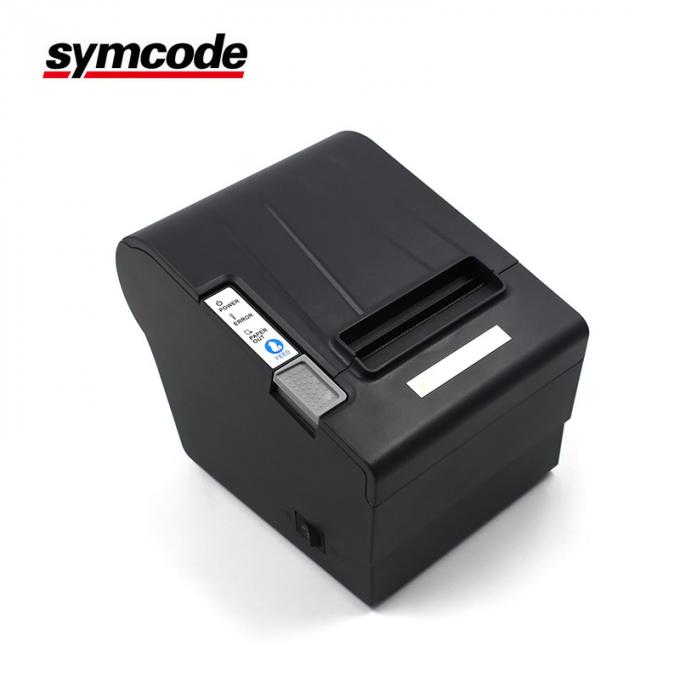

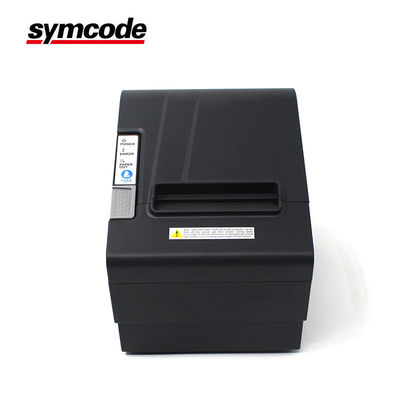

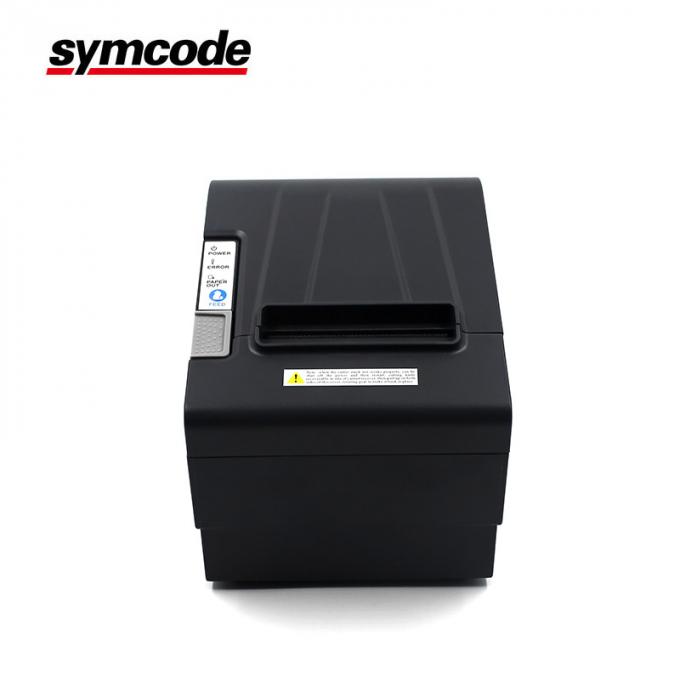

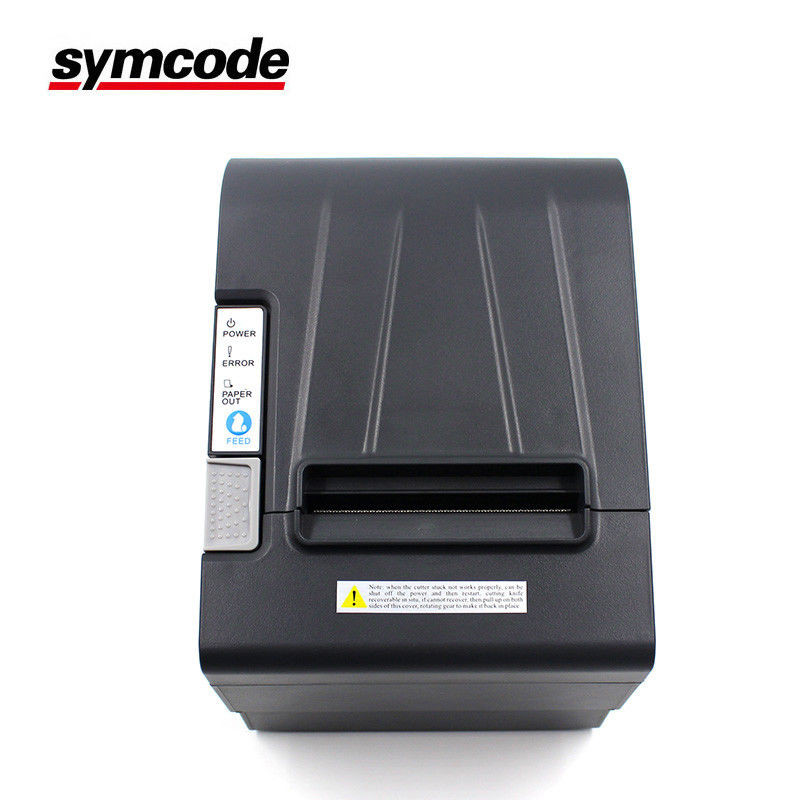

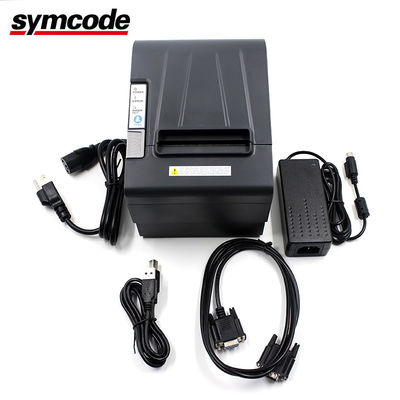

80mm direct line pos thermal printer with metallic
cutter printer support RJ11 cash drawer
Printing Control Command
1,Character printing command: supports double width and double height print
of ANK characters, user-defined characters and Chinese characters, the
character line spacing is adjustable.
2,Graphics printing command: supports the print of bit map graphics and
download bit map graphics with different density
3,GS barcode printing command: supports EAN-13,EAN-8 barcode printing.
FAQ
Q:Whether support samples ?
A:Samples are available for test
Q:How about the Delivery time ?
A:All the Printers for Samples are in stock, can ship it during 2-3 days after the payment received.
7-10 working days for 1000pcs, 10-15 working days for 2000pcs
Q:How about the payment terms
A: Western union, T/T, Paypal in advance or order in aliexpress.
Q: How to install the driver for Pos Printer ?
A:All of the printer support the windows XP, win2000,win2003,winme,win vista,Win7,win8,win8.1,Linux,OPOS.
Model | MJ-T80 |
Type | 80mm thermal receipt printer |
RAM | 4MB(POS80x/POS81x/POS82x) /8MB(POS83x), |
FLASH | 4MB(POS80x/POS81x/POS82x)/ 8MB(POS83x) |
Printing Method | Thermal Line Printing |
Resolution | 203DPI,8 dots/mm |
Paper width | 80mm |
Printing speed | 250 mm/s |
Interface | Standard: cash box interface / USB Optional: serial / parallel / Ethernet port / Bluetooth / Wi-Fi and other |
Chart | Supports dot printing at different densities Supports raster bitmap printing Support download bitmap printing, |
Barcode type | 1D 2D |
LED | Two green+one red |
Paper thickness | 0.056~0.1mm |
Paper diameter | 80mm |
Cutter Type | Manual tearing / Auto |
Operating conditions |
-10℃ ~ 50℃,25% ~ 80%RH |
Storage conditions |
-40℃ ~ 70℃,≤93%RH(40℃) |
Size | 196.4mm×145mm×152mm(W×L×H) |
Weight | 1.1KG |
Driver | Windows(WIN7/WIN8/WIN10/Vista/XP/2000) Ubuntu 12.04 32/64 Ubuntu 14.04 32/64 |
