Fast Decoding 1D Barcode Scanner Module ARM32-Bit CPU For Wiegand Turnstiles Gate

Fast Decoding 1D Barcode Scanner Module ARM32-Bit CPU For Wiegand Turnstiles Gate

    • Fast Decoding 1D Barcode Scanner Module ARM32-Bit CPU For Wiegand Turnstiles Gate
    • Fast Decoding 1D Barcode Scanner Module ARM32-Bit CPU For Wiegand Turnstiles Gate
    • Fast Decoding 1D Barcode Scanner Module ARM32-Bit CPU For Wiegand Turnstiles Gate
  • Fast Decoding 1D Barcode Scanner Module ARM32-Bit CPU For Wiegand Turnstiles Gate

    Product Details:

    Place of Origin: China
    Brand Name: symcode
    Certification: CE FCC ROHS IP54
    Model Number: MJ-2060S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Packaging Details: Standard package
    Delivery Time: Sample order:1-3 days / Bulk order:7-15days
    Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
    Supply Ability: 50,000pcs per month
    Contact Now
    Detailed Product Description
    Reading Mode: Visible Red Light, Wavelength 632nm Meas: 21.6mm*13*16.2
    Interface: USB/TTL-RS232/PS2 Wiegand Barcode Accuracy: ≥4mil/0.1mm@PCS90%
    CPU: ARM32-bit Current: 110mA;30mA
    Ambient Light Resistance: 100,000Lux Max Read Mode: Manual Reading, Automatic Reading, Induction Reading
    Decoding Speed: Up To 300 Times / Sec Optical System: Linear CCD Sensor
    Resolution: 1500 Read Depth Of Field: 50mm~600mm
    High Light:

    oem scan engine

    ,

    barcode scanner module

    Superior Performance Wiegand Format Fast Decoding 1D

    Barcode Scanner Module for wiegand turnstiles gate





    Advantages:

    • OEM develop special and small size
    • 3.3-5V medical industry PC kiosk

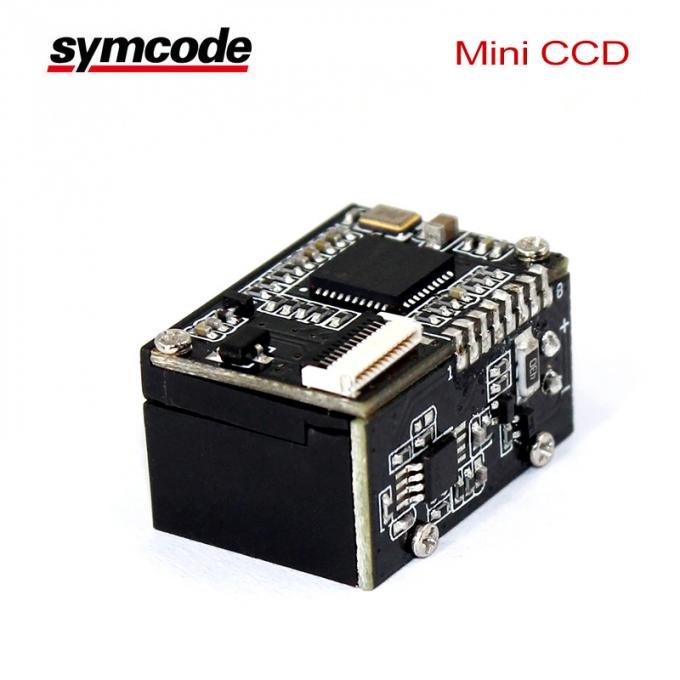

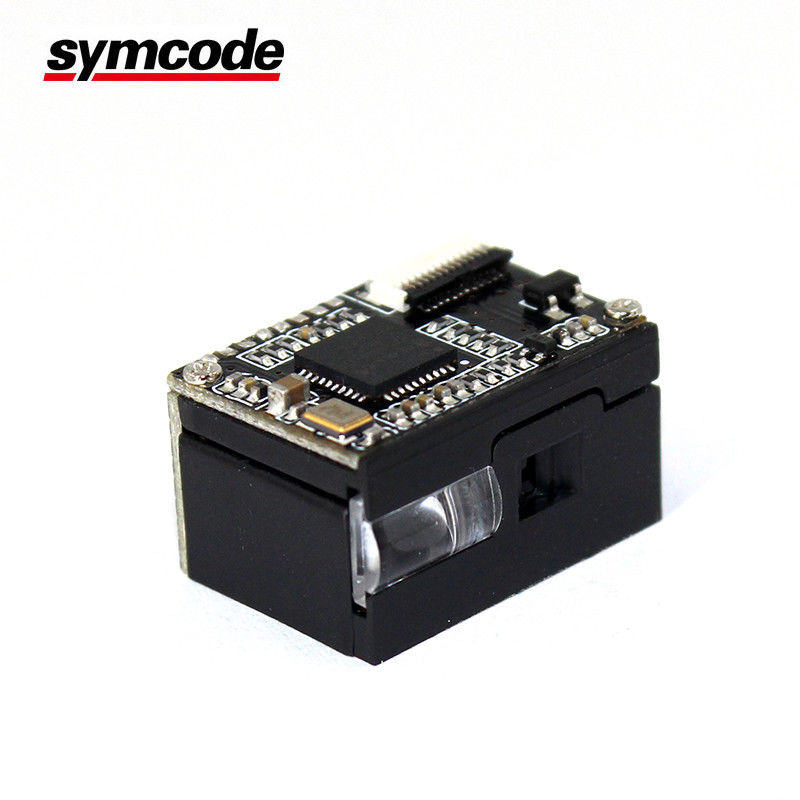

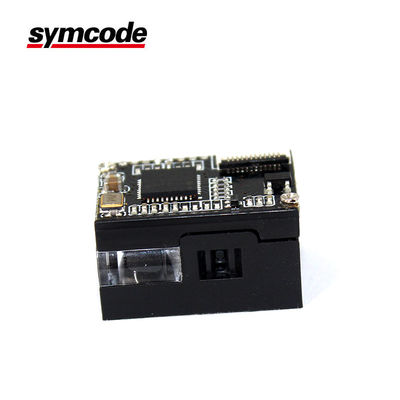

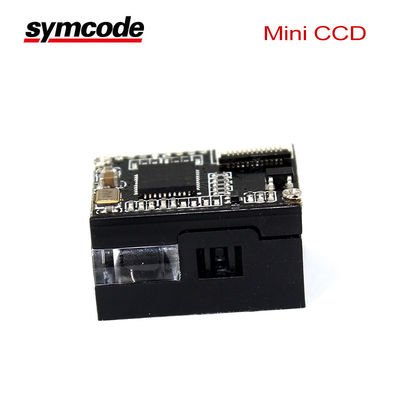

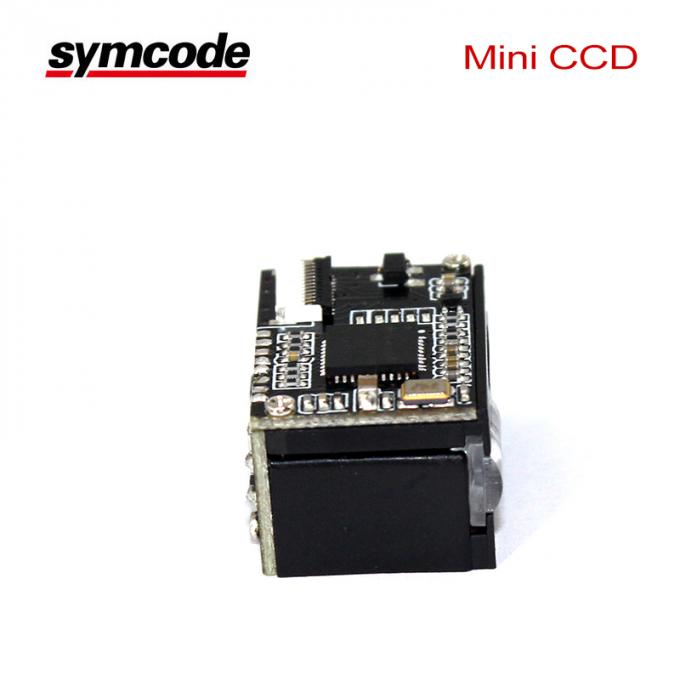

    • Outline of MJ-2060S is shown in figure1
    • Topside has electrical control components, including flexible cable socket, interface socket, through which MJ-2060S interfaces with external device
    • Front side has optical components such as image lens, through which MJ-2060S captures image
    • Aiming light, which sends rectangular, green light beam for aiming and illumination lights, which illuminates barcode
    • Bracket covers sides and bottom of engine
    • Two mounting holes on the bottom side are available for mounting engine to external device
    • Back side is CCD circuit for image capture
    light source Visible red light, wavelength 632nm
    Optical system Linear CCD Sensor
    processor ARM32-bit
    Resolution 1500
    definition ≥4mil/0.1mm(PCS90%,CODE 39)
    Read depth of field 50mm~600mm
    Decoding speed Up to 300 times / sec
    Read mode Manual reading, automatic reading, induction reading
    Read angle Test Conditions:CODE39,10mil/0.25mm,PCS90%
      Tilt Pitch:±60°
      Rotate: ±30°
      Skewed : ±60°
    Print contrast ≥25%
    Ambient light intensity 0-100000LUX
    Reading code system UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128, Code 39,Code 93, Interleaved 2 of 5, ITF-6, ITF-14,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,etc.
    Size 21.6mm*13*16.2






    FAQ



    Q: How about the shipping way?

    A: There are DHL,FEDEX,TNT,UPS,E-EMS(we also can ship goods by your shipping account or other agent you proivded)

    Q: How about the Warranty

    A: One year warranty. During warranty period, the damage caused by non-human factor, HSPOS will be responsible for the free repair.

    Overdue warranty period, HSPOS will continue to provide services with reasonable price to the customer
