Place of Origin: | China |
Brand Name: | symcode |
Certification: | CE / RoHS / FCC |
Model Number: | MJ-9100 |
Minimum Order Quantity: | 1pcs |
---|---|
Packaging Details: | Carton box |
Delivery Time: | Sample order:1-3 days / Bulk order:7-15days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 50,000pcs per month |
Reading Mode: | CMOS | Decode: | 1D |
---|---|---|---|

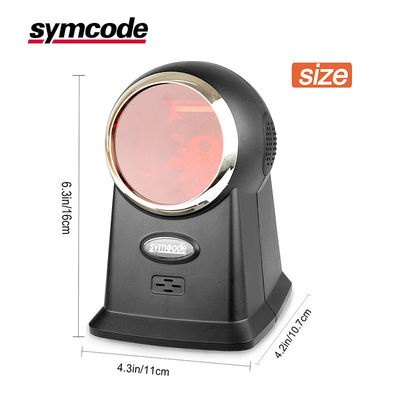

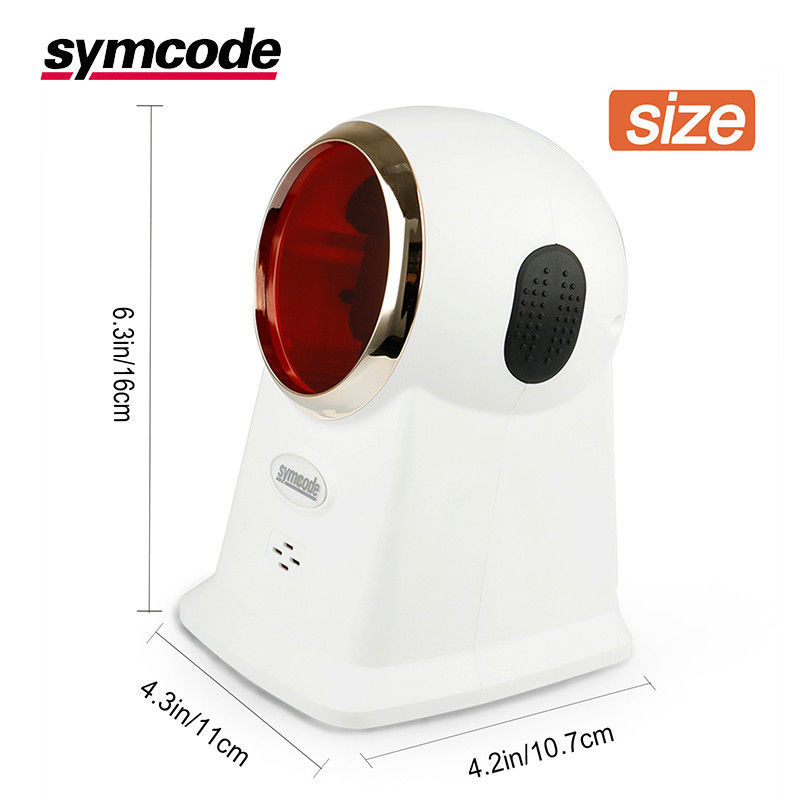

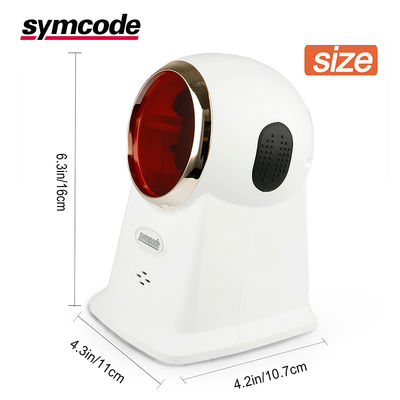

Meas: | 160mmx170mmx107mm | Interface: | RS-232, USB |
Optical Mode: | 20 Lines And Single Line | Scope Of Application: | Product |
Scan Rate:: | 1120 Scans/second | Type: | Professional Barcode |
Color: | Black White | Scan Angles: | Roll 30 ,Pitch 75,Yaw 65 |
High Light: | omni directional scanner,fixed barcode scanner |
Symcode MJ-9100 New Design Desktop
Omnidirectional Barcode Scanner
Main Features:
● Scanning mode: Dual-direction single line.
● Scanning speed: 200 times every second.
● Scanning accuracy: 0.10mm.
● 8Bit ARM microprocessor, strong decode and error correction ability.
● Manual trigger / continuous scanning.
● Comfortable handle.
● Can be set the prefix and suffix code.
● Support USB, PS2, RS232.
● Support multi-language.
● With drop resistance function.
● Code system: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI etc.
Type of illuminant | 650(Visible Laser ) |
Scan Rate: | 1120 scans/second |

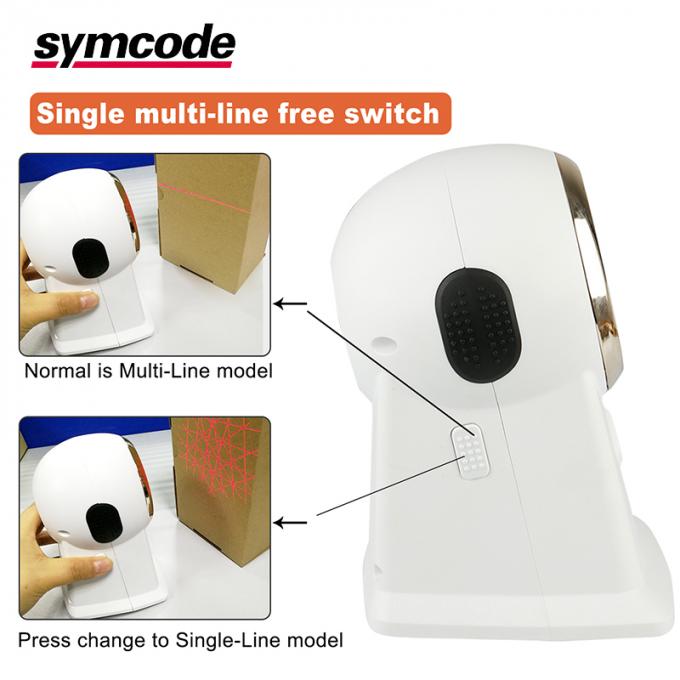

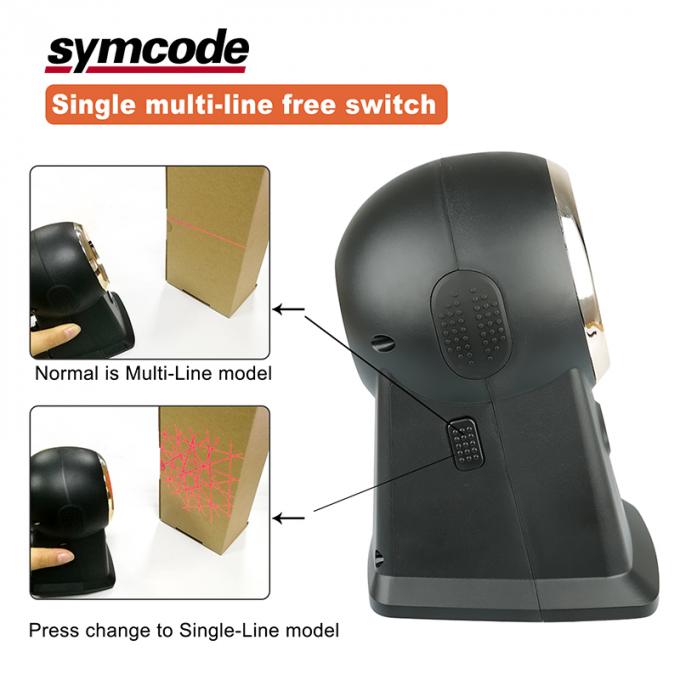

Scanning mode | # 20 lines # Single line (Button) |
Reading preciseness | 4mil |
Interface : | RS232 / USB |
Print Contrast: | 30%min |
Barcode types: | UPC/EAN/JAN,Code 39,Code 128, IL 2/5 expand,RSS etc |
Safety performance | Accord with nationallevel 1 laser safety standards level 1 standards |
EMC | FCC part 15 Class BEuropean Union EMC directive |
Scan of depth | 5mil 25mm~50mm 7.8mil 0mm~150mm 10.4mil 0mm~175mm 13mil 0mm~215mm 26mil 25mm~250mm |
