Place of Origin: | China |
Brand Name: | symcode |
Certification: | CE / RoHS / FCC |
Model Number: | MJ-7580 |
Minimum Order Quantity: | 1pcs |
---|---|
Packaging Details: | Carton box |
Delivery Time: | Sample order:1-3 days / Bulk order:7-15days |
Payment Terms: | T/T, Western Union, L/C, D/A, D/P, , MoneyGram |
Supply Ability: | 50,000pcs per month |
Application: | Shop | Decode: | 2D |
---|---|---|---|
Light Source: | CMOS | Interface: | USB/RS232/KB |
Precision: | ≥3MIL | Print Contrast:: | 30%min |
Scan Mode: | Support Autosense / Support Commands | Print Contrast: | 25%PCS |
Material: | ABS | Power: | DC 5V |
Code 39 0.1mm(4mil): | 0mm 40mm | Code 39 0.127mm: | (5mil) 0mm 70mm |
High Light: | laser barcode scanner,symcode barcode scanner |

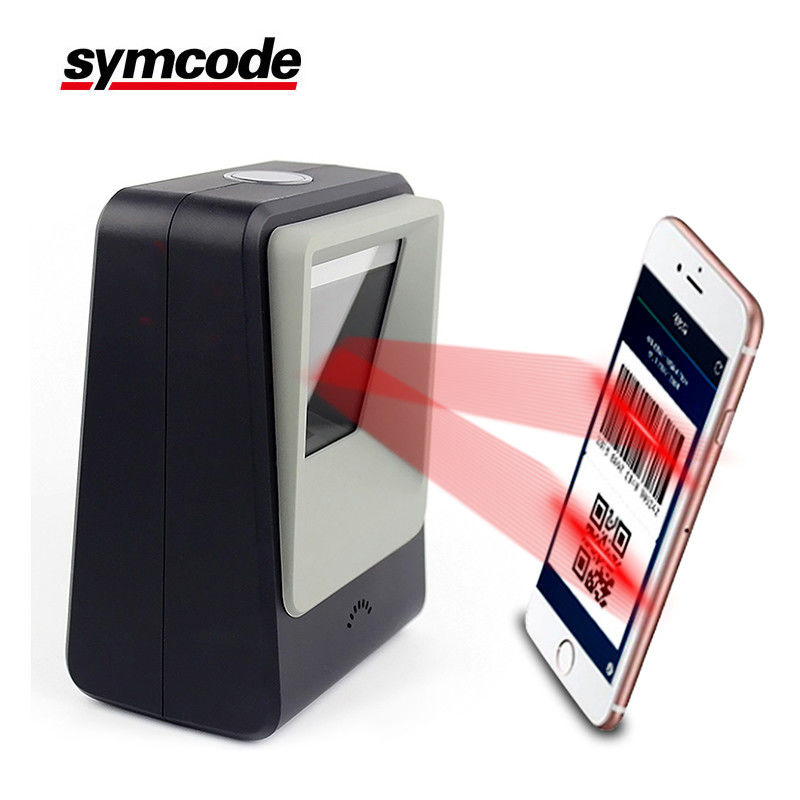

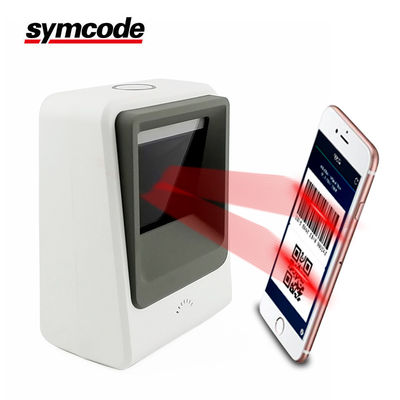

MJ-7580 QR DM code easily read 2D code on cellphone screen
E-ticket E-coupon reader
MJ7580 provides users with increased throughput for virtually all 1D and 2D bar code reading applications—including poorlyprinted or damaged bar codes—by incorporating high resolution imaging and true contact reading into an affordable solution.
It is a high performance hand-held area-imaging scanner. This desktop handsfree scanner decodes all of today’s standard bar codes including 1D, PDF417 ,EAN/UCC Composite, Matrix and Postal Codes regardless of orientation.It’s suitable for a wide variety of applications.
Compared to the expensive imported scanners, MJ7580 is definitely a cost effective and high performance product for you!
Brief Introduction:
1. Inventory Mode: quick and easy access to inventory mode to count numbers of your items, keeps 5K types in mind for data upload
2. Symcode barcode Scanner load an advanced 32 bit digital signal processing technology, and thanks to Taohorse exclusive developed scanning system, scanning speed reaches normal 4 mils per line and can be set to be faster and read more precise codes
3. Dual modes supported, Wireless Mode & Wired Mode, when in wireless mode, this barcode reader is portable and allows to be carried everywhere to scan codes with the usb data receiver; When in wired mode, it works with computer, desktop.
Type | 2D Desktop Barcode Scanner |
Material | ABS |
Interface | USB,RS232 |
Processor | ARM32-bit |
Light source | 617nm LED,6500K LEDs |
Image sensor | 640*480 CMOS |
Resolution | ≥4mil/0.1mm@PCS90% |
Scan angle | Roll:0-360° Pitch:±65° Yaw:±60° |
Scan mode | Support Autosense / Support Commands |
Print contrast | 25%PCS |
Power | DC 5V |
Codes type | 1D:EAN-8, EAN-13, Codabar, CODE 39, CODE 93, CODE 128, China Post, GS1-128, UPC-A, UPC-E, ISBN/ISSN, ISBT , Interleaved 2 of 5,Standard 2 of 5, Matrix 2 of 5,Industrial 2 of 5 , MSI, RSS, ITF14, Telepen. 2D:QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF417, Maxicode, Aztec, Hanxin. |
Scan of depth | Code 39 0.1mm(4mil) 0mm 40mm Code 39 0.127mm(5mil) 0mm 70mm Code 39 0.5mm(20mil) 10mm 50mm UPC/EAN 0.33mm(13mil) 0mm 250mm QR Code 20.0mil 0mm 20mm Data Matrix 10mil 1mm 40mm PDF 417 6.8mil 0mm 60mm |
