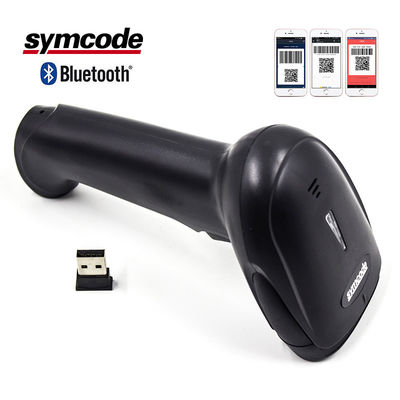

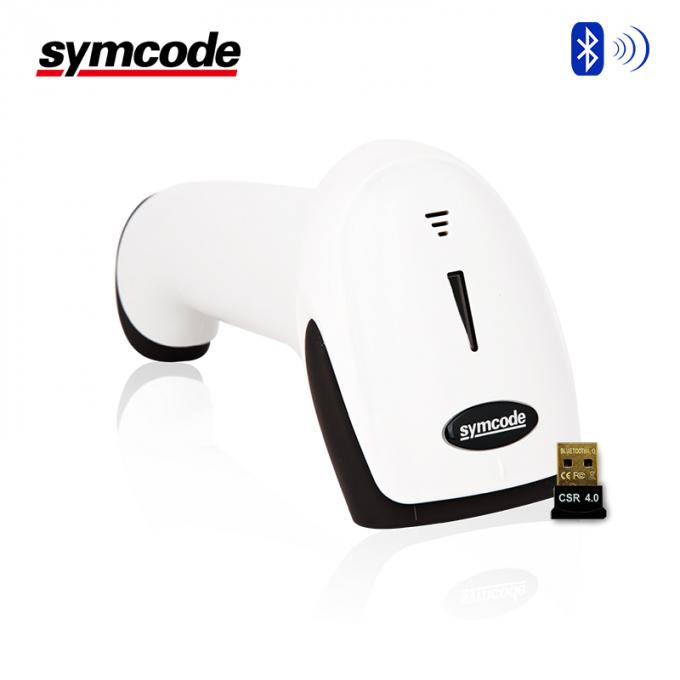

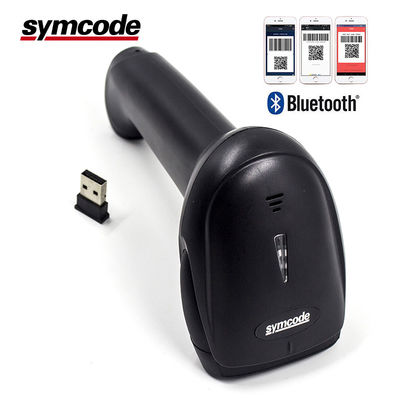

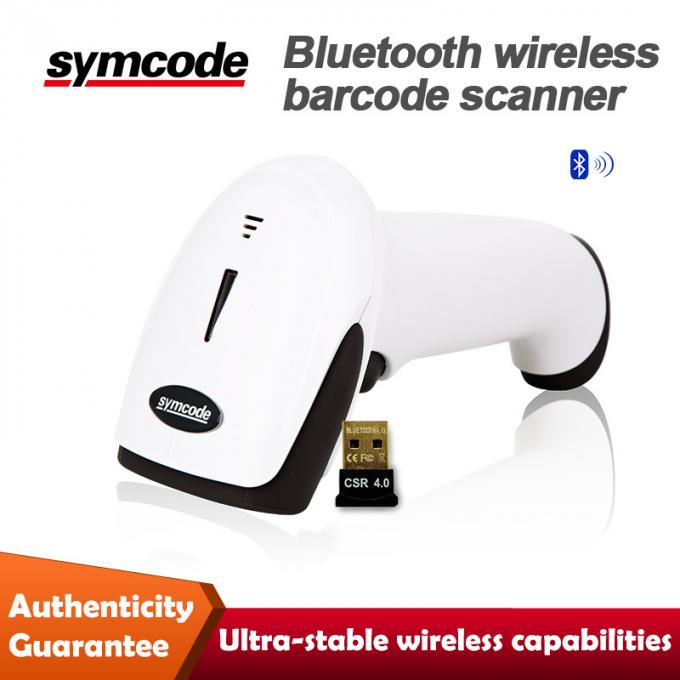

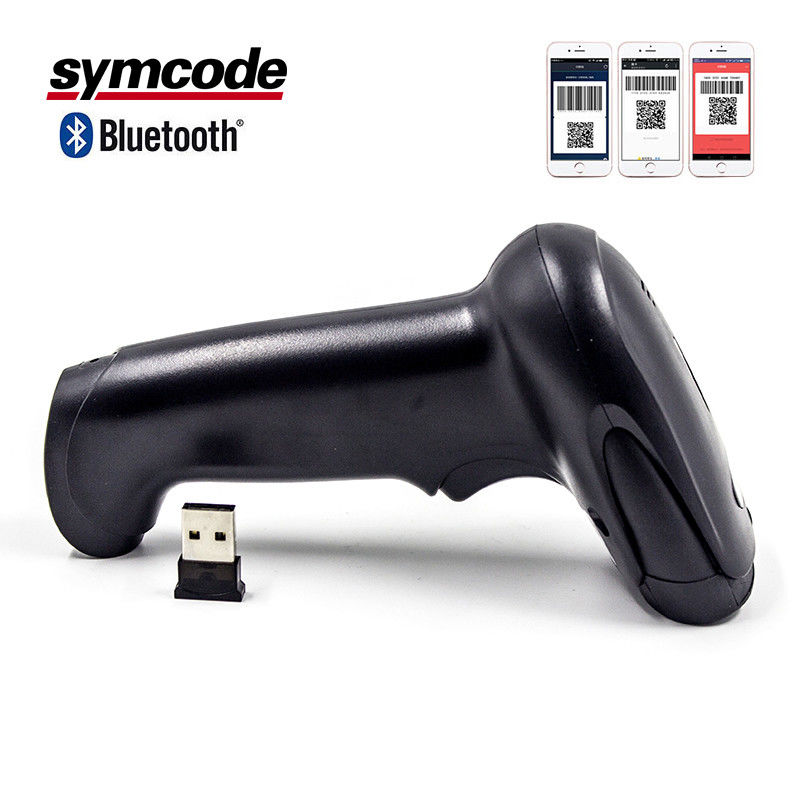

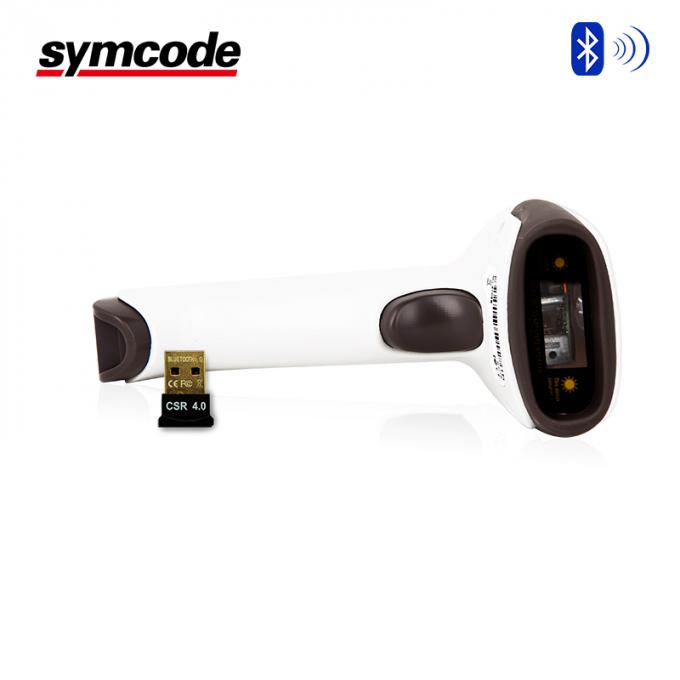

Programmable Infrared Wireless Scanner Barcode / 2D Image Scanner MJ-6706B

Product Details:

Place of Origin:	China
Brand Name:	symcode
Certification:	CE / RoHS / FCC
Model Number:	MJ-6706B

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	Carton box
Delivery Time:	Sample order:1-3 days / Bulk order:7-15days
Payment Terms:	T/T, Western Union, D/P, D/A
Supply Ability:	50,000pcs per month

Contact Now

Detailed Product Description

Reading Mode:	CMOS	Decode:	1D 2D
Interface:	BLUETOOTH	Scanning Speed:	100±2 Times /s
Scanning Angle:	±60°±65°±42°	Resolution:	4mil
Battery:	DC 3.7V,1800mA Li-ion Battery	Dimension:	150mm50mm65mm
Bluetooth Module:	Bluetooth Module 4.0	Depth Of Scan Field::	40mm~300mm
High Light:	supermarket barcode scanner , cordless barcode scanner

Good Quality wireless MJ-6706B 2D Programmable

Infrared scanner Barcode barcode

Specifications:

- Bluetooth: V4.0

- Scanning speed: 200 per second

- Scan mode: 2D

- Scan rate: 5 in/s

- Resolution: 4mil

Brief

MJ-6709B is industrial-grade bar code scanner. By enhancing the technology,with the best scanning light source Now MJ-6709B can read some bad-qualified ,damaged and dirty bar code .

It is characterized by stable performance and durability.With industrial housing protection,even in noisy and industrial environment, high volume buzzer can meet the requirement on confirming each scanning.

Specification
Mechanical	Length:57.8mm, Width: 42.3mm, Height:16.4mm
Weight	40g
Electrical	Power: DC5V Typical: 75mA DC5V
CPU	32bit ARM CPU
Data storage	100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional).
Working mode	Bluetooth mode, USB mode, offline mode and RS232 mode(optional)

Artificial light immunity	100,000 lux
Scanner performance	Sensor Type: CMOS Scanner Rate: 100 times Scanner Angle: ±50°,±65°,±35°(skew, pitch, Roll) Contrast: >20% Decode Speed: 100 times per second

Barcode Type	UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Code 39 full ASCII,Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5,Codabar (NW7), Code 128, Code 93, Code 11(USD-8), MSI/Plessey,UK/Plessey, UCC/EAN 128, China Post, GS1 DataBar (formerly RSS) variants
Decoding depth & Max. resolution	(1 mil = 0.0254 mm) 4 mil: 42- 75 mm 5 mil: 40-105 mm 10 mil: 10-250 mm 15 mil: 23-380 mm 20 mil: 35-490 mm 30 mil: 30-650 mm 55 mil: 75-900 mm
Communication	Class 3 Bluetooth HID, SPP with 20M distance, USB, RS232 cable(optional)
OS	IOS, Android, Windows, Mac

Laser safety	IEC60825-1-2007, Class 1
Temperature	Operating: -10°C to 60°C (-4°F to 140°F); Storage: -40°C to 70°C (-40°F to 158°F)
Humidity	5% to 90% (non-condensing)

Programmable Infrared Wireless Scanner Barcode / 2D Image Scanner MJ-6706B

Type	2D Bluetooth image barcode scanner
Resolution:	752*480
Precision:	≥ 3 mil
Depth of scan field:	40mm~300mm
Print contrast:	≥ 30 %
Roll / Pitch / Yaw:	360°, ±60°, ±60°
Ambient Light Immunity:	0~100,000 LUX
Decode capability:	1D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc. 2D:PDF417 / QR code / Data Matrix / Aztec, Maxicode
Bluetooth module	Bluetooth module 4.0
Communication distance	20 meters(visual)
Battery	3.7V 1000mA
Momery	512KB
Drop Specifications:	1.8m drops to concrete
Dimensions:	L 19.4cmW 7.0cmH 8.9cm
Weight:	200g
