Place of Origin: | China |
Brand Name: | symcode |
Certification: | CE / RoHS / FCC |
Model Number: | MJ-6709 |
Minimum Order Quantity: | 1pcs |
---|---|
Packaging Details: | Carton box |
Delivery Time: | Sample order:1-3 days / Bulk order:7-15days |
Payment Terms: | T/T, Western Union, L/C, D/A, D/P, , MoneyGram |
Supply Ability: | 50,000pcs per month |
Application: | Supermarket | Decode: | 1D |
---|---|---|---|
Light Source: | 650-670nm(Visible Laser ) | Interface: | USB RS232 KB |
Reading Preciseness: | 0.10mm(3mil) | Connection Type: | Wired |
CPU: | ARM Cortex™-M3, 32-bit | Bit Error Rate: | 1/3million |
Product Weight: | 0.181 Kg | Scanner Type: | Barcode Scanner |
Package Weight: | 0.319 Kg | Reading Distance: | 2.5-600mm(100%UPC/EAN) |
High Light: | ccd barcode scanner,symcode barcode scanner |

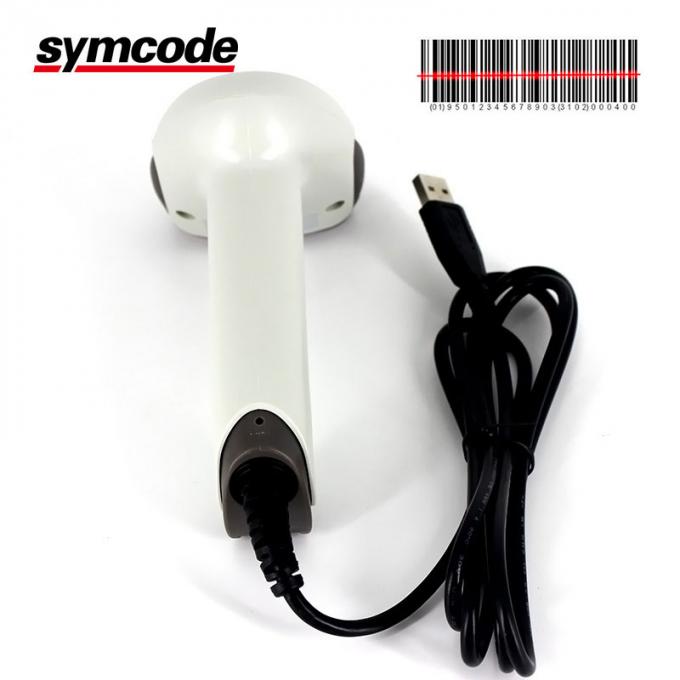

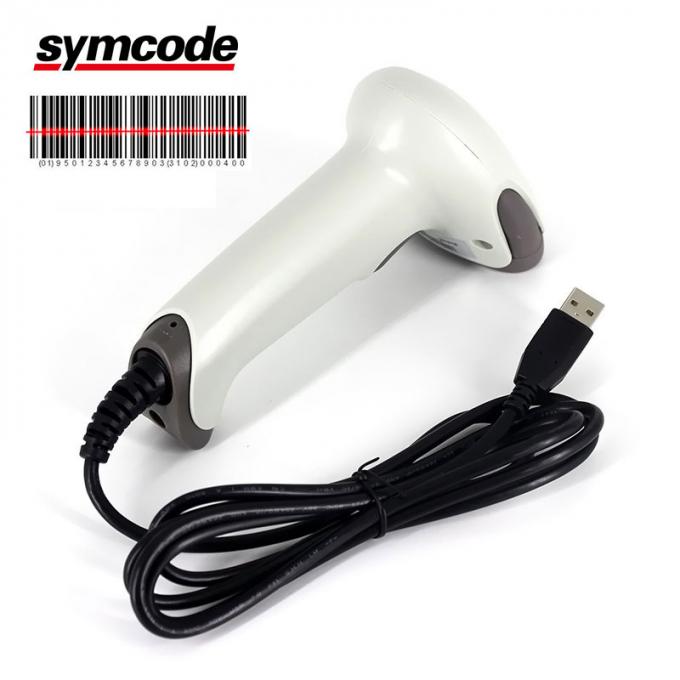

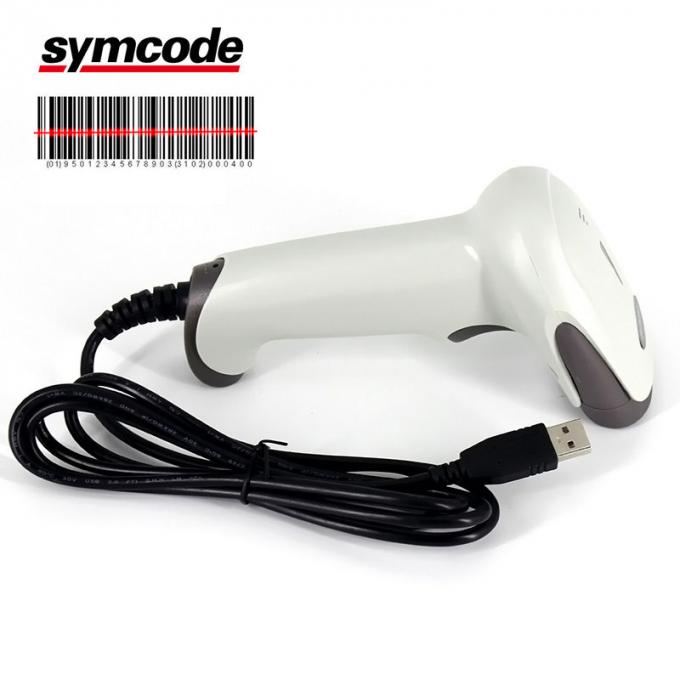

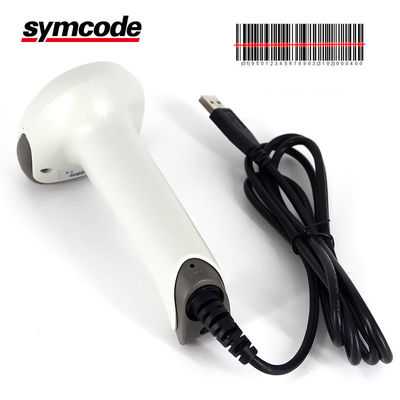

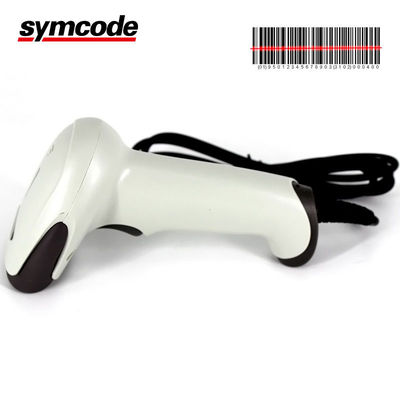

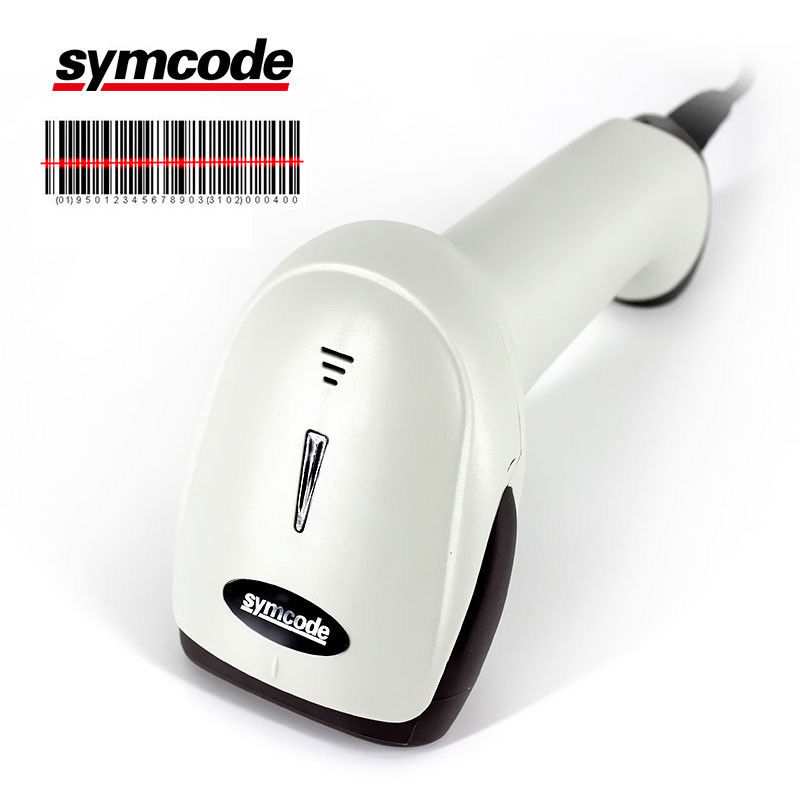

OEM/ ODM Custom Made Symcode MJ-6709 High Precision
Hands Free Barcode Scanner
Performanceparameters | Description |
Light Source: | Visible Laser diode ,650nm |
Scan rate: | 300scans per second |
Scanning Angle: | ±55°±65°±30°(left&right, front&back, turn) |
Scanning wideth: | 30mm@ scanning window 220mm@200mm |
Scanning type: | Single-line |
Resolution: | 0.1mm(4mil)at pcs 0.9 |
Depth of scanning field: | 0-280mm(0.33mm.PCS 90%) |
Print Contrast Minimum: | 30%,minimum reflective difference(@650nm) |
Indicator light: | LED DIODE |
Interface Support | USB,PS2,RS232 |
Minimum Resolution: | 3mil |
Pysical Charateristic | Description |
Voltage: | DC 5V±1% |
Current: | 85mA(Operating mode),36mA(Quiescent current) |
Dimensions: | L83mm*W70mm*H172mm |
Weight: | 205g(include the cable) |
USB: | 2M(Can not remove) |
Housing Materials: | ABS+PC |
User Environment: | |
Operating Temperature: | -10°~50° |
Storage Temperature: | -40°~70° |
Operating Humdity: | 5~95% relative humidity,non-condensing |
Environment luminance: | 5,000 Lux Max(Fluorescence) |
IP Level: | IP54 |
Drop Specification: | withstands multiple 2m drops to concrete |
Safe: | |
EMI/RFI: | FCC class A and CE |
Laser safety: | CDRH class 2 laser product |
Decode Capability: |
UPC-A,UPC-E,EAN-13,EAN-8,Code 39,code128, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5 ,Codabar, EAN 128,M ,China Post code,ect. |
Certificate | RoHS,CE,FC |
