Place of Origin: | China |
Brand Name: | symcode |
Certification: | CE / RoHS / FCC / IP54 |
Model Number: | MJ-6708 |
Minimum Order Quantity: | 1pcs |
---|---|
Packaging Details: | Carton box |
Delivery Time: | Sample order:1-3 days / Bulk order:7-15days |
Payment Terms: | T/T, Western Union, D/P, D/A, L/C |
Supply Ability: | 50,000pcs per month |
Reading Mode: | LASER | Weight: | 130.2g |
---|---|---|---|
Interface: | USB RS232 KB Virtual Serial Port | Reading Distance: | 2.5-600mm(100%UPC/EAN) |
Scan Rate: | 100 Scans/second | Print Contrast: | PCS45%@4mil/0.1mm |
Scan Scope: | 10mm-250mm | Reading Preciseness: | 3mil |
Light Source: | 650-670nm(Visible Laser ) | Scanning Angle: | ±60° @ 0°Roll And 0° Pitch |
High Light: | automatic barcode scanner,pos barcode scanner |

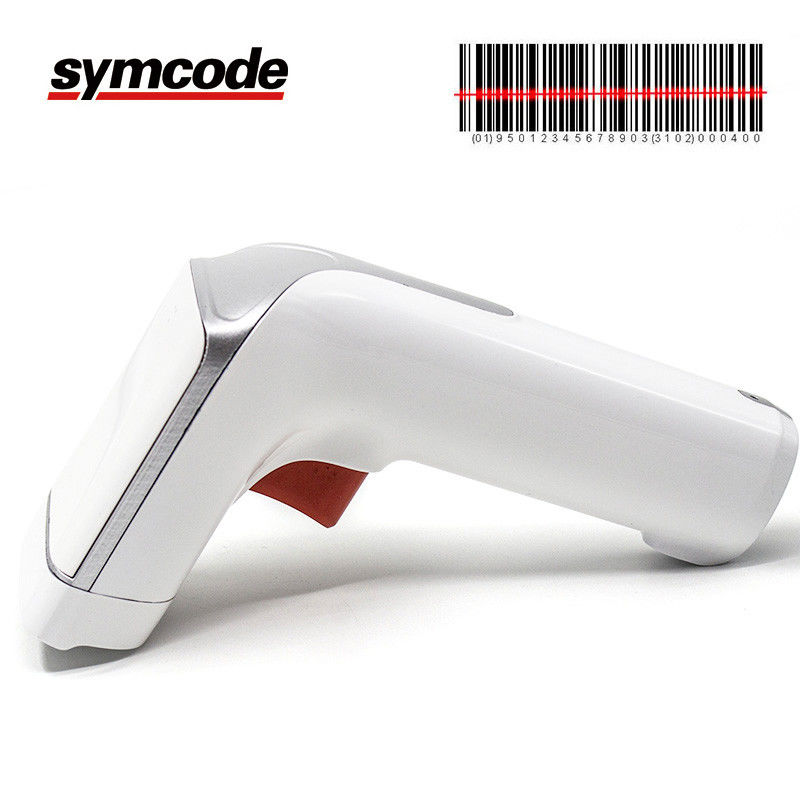

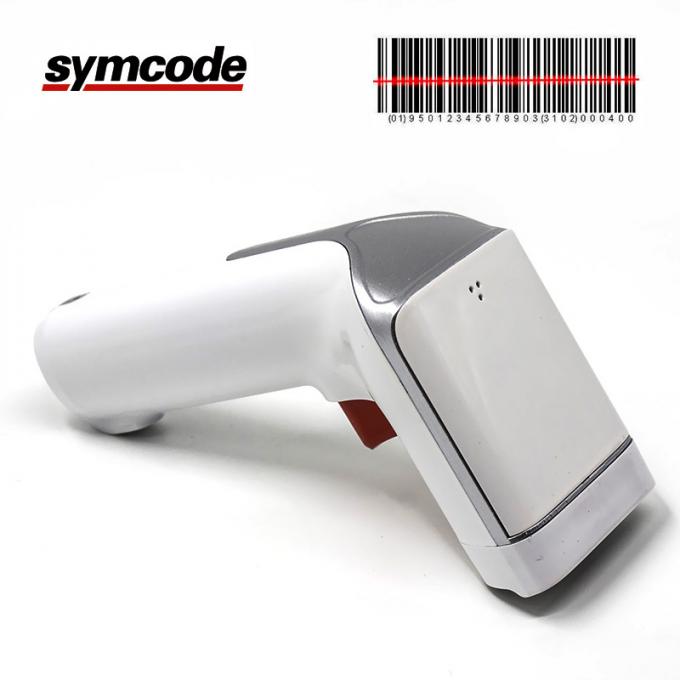

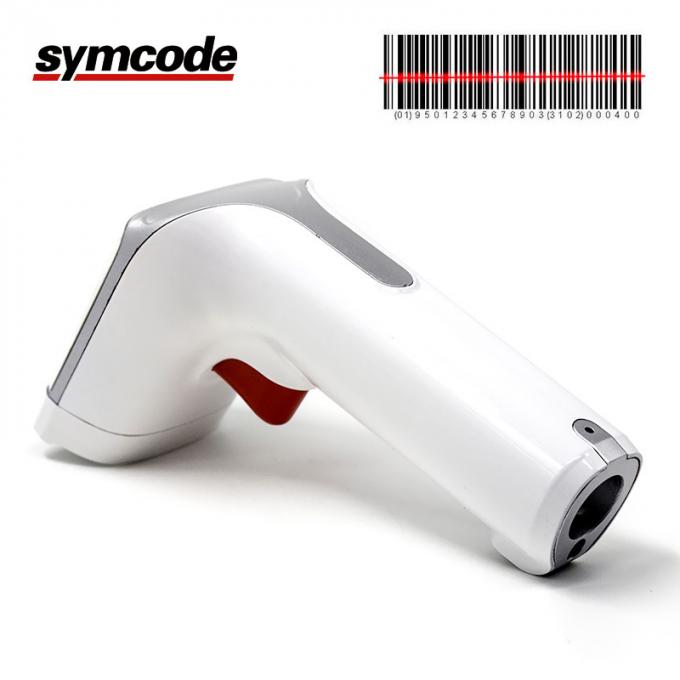

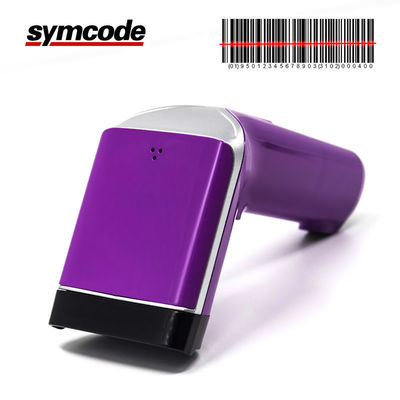

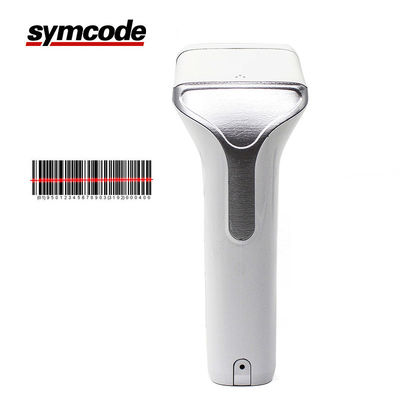

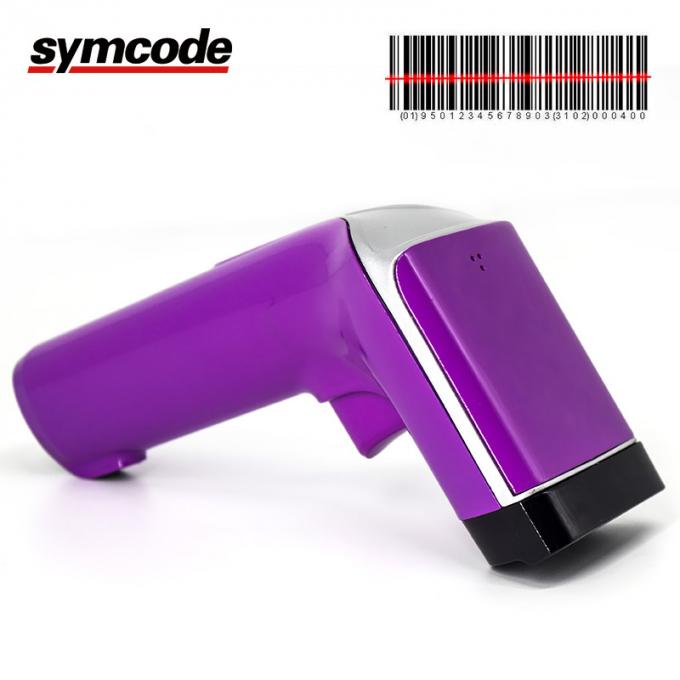

1D Laser MJ-6708 USB RS232 Virtual Serial Port
Wired Bar Code Scanner Reader 32-bit
Feature:
Upto IP54 industrial level ,waterproof , dustproof .
Manual trigger/continuous scan/auto-sense(for choice),very comfortable operating.
Quick Decoding Capability with duzzy Fuzzy Information Processing System
Support Remote software update
Upto 10,000 hours laser Life , French press key with life of 0.3 million pressing times .
Support multi-interface: RS232/USB/KB,
Ergonomic design offer comfortable operation and enhance the working efficiency
Light source: 650 (visible laser)
scan model: single line Bi-directional
scan speed: 200 line/sec
resolution: 3.3mil
width of scan: 30mm﹫scanner window,220mm﹫200mm
depth of scan: 0-250mm(0.33mm.PCS 90%)
corner: 30°
elevation: 65°
deflection: 55°
decode capacity: UPC/EAN,UPC/EAN(include complement code), Code128,UCC/EAN128,Code39,Code 39Full ASCII,Code128Full ASCII,Codabar,Interleaved 2 of 5,Code93,MSI,Code11,ISBN,ISSN,china post/code,etc
interface: RS232,PS2,USB
print contrast: 20% minimum
bit error rate: 1/5 million
prompt: buzzer indicator
scan model: handheld / auto-sense
size: L×W×H:165mm×63mm×87mm
weight: 129g
material: ABS+PC
cable standard: straight:2.0m
Type | Wired Handheld 1D Laser Bar code Scanner -Optional 2.4G wireless+USB |
Light Source | 650-670nm(Visible Laser ) |
Scan Rate | 100 scans/second |
Reading preciseness | 3mil |
Interface | PS2 ,Rs232,USB and more |
Reading Distance | 2.5-600mm(100%UPC/EAN) |
Barcode types | EAN-8/13, UPC-A/E,code 39/93/128,EAN128,Codabar, industrial 2 of 5, interleave 2 of 5.matrix 2 of 5, MSI |
scan scope | 10mm-250mm |
Scanning angle | inclination angle 45˚, Elevation angle 60˚ |
Bit error rate | 1/3million |
Power voltage | 5V |
Safety performance | CE FCC ROHS ISO9001 Accord with national level 2laser safety standards |
Dimension | 150mm*50mm*65mm |
Weight | 119g |
Features:
1. Plug & Play wired laser barcode scanner,No driver needed,read all the standard 1D bar codes,compatible with Windows, Mac and Linux
2. Supports editing, operations include Insert, Stripping,termination strings ,CR,Tab etc,Support customized prefix and suffix .
Trigger Mode:Manual trigger,Continuous scanning (do not need to press the button)
We provide 12months warranty and replacement.
