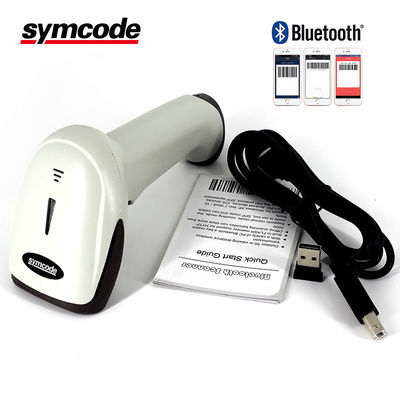

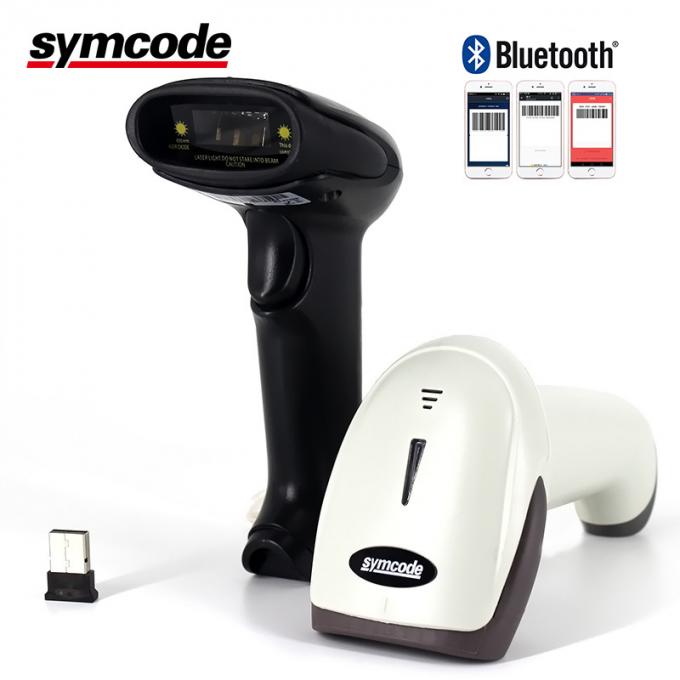

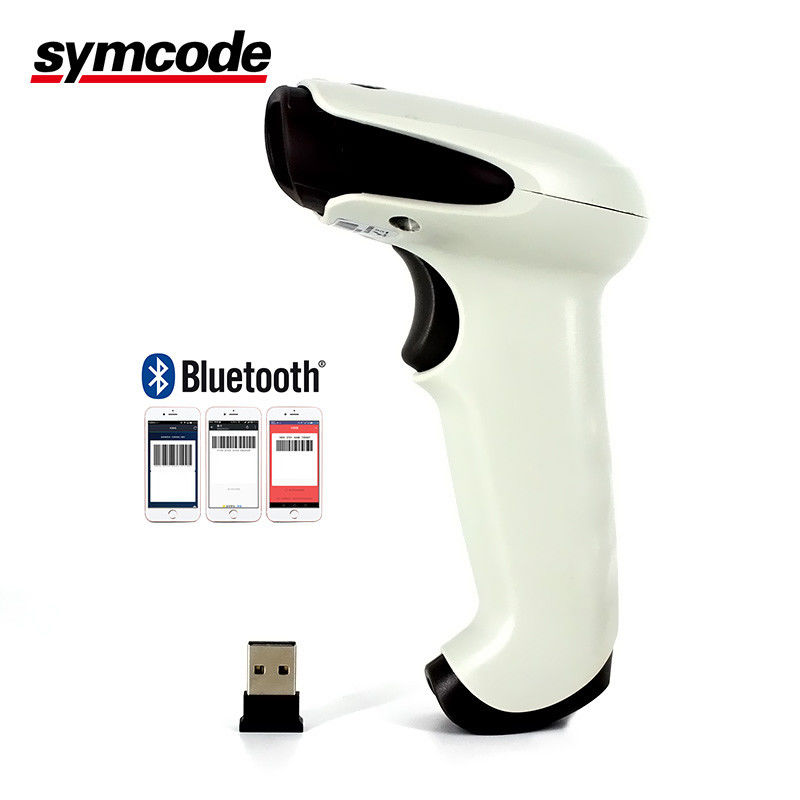

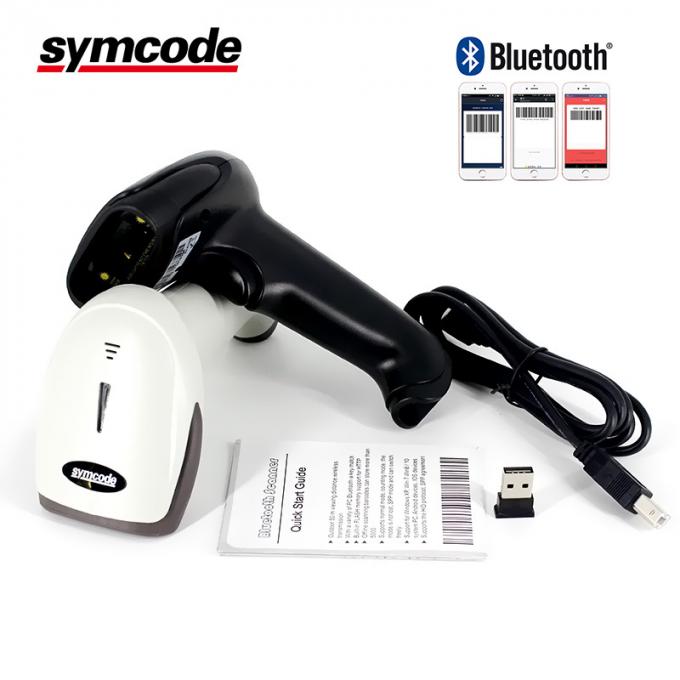

1D USB CCDBluetooth Barcode Scanner Robust Design Sensitive And Accurately

1D USB CCDBluetooth Barcode Scanner Robust Design Sensitive And Accurately

    • 1D USB CCDBluetooth Barcode Scanner Robust Design Sensitive And Accurately
    • 1D USB CCDBluetooth Barcode Scanner Robust Design Sensitive And Accurately
  • 1D USB CCDBluetooth Barcode Scanner Robust Design Sensitive And Accurately

    Product Details:

    Place of Origin: China
    Brand Name: symcode
    Certification: CE / RoHS / FCC
    Model Number: MJ-6709CB

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Packaging Details: Carton box
    Delivery Time: Sample order:1-3 days / Bulk order:7-15days
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 50,000pcs per month
    Detailed Product Description
    Reading Mode: CCD Decode: 1D
    Meas: 78mmx100mmx165mm Interface: BLUETOOTH
    Reading Capacity: Read Barcode Symbology From Phone Screen(Mobile Phone,PC Etc.) Operation System: Windows XP 7 8 10 MAC ANDROID IOS
    Battery: 3.7V 1800mA Li-ion Memory: 512Kb
    CPU: ARM Cortex™-M3, 32-bit Scanning Width: ≤ 110 Mm/pcs 0.9
    Scanning Distance: 500mm@20mil/0.5mm, PCS90%

    Bluetooth Wireless USB 1D Barcode Scanner

    CCD Bar Code Reader iOS MAC Android Scanning





    Features:

    1. CCD optical imaging scanning technology that is researched and developed independently can identify screen code, incomplete code and fuzzy code etc, Effectively compensate for the problem that laser scanner can not identify screen code.



    2. Wireless barcode scanner use the Bluetooth wireless signal communication, effective communication range is 10 meters.



    3. DECODE CAPABILITY:Australian Post, Aztec, BPO, Canada Post, Codabar, Codablock, Code 11, Code 39, Code 93, Code 128/EAN128, DataMatrix, Dutch Post, EAN.UCC Composite, Interleaved 2 of 5, Japan Post, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI Code, PDF417, Planet, Plessey Code, Postnet, QR code, RSS, Standard 2 of 5, Telepen, TLC 39, UPC/EAN



    4. BARCODE SCANNER: 2d/qr Barcode Scanner can easily capture bar codes 1D on labels, paper, and mobile phone or computer displays,Sensitive and accurately



    5. Can work with ipad /iphone /Andriod /mac and Whindos , you can easy connect the barcode scaner with smartphone throght bluetooth wireless



    6. It can be set up by reading the bar code to change the data transmission format, edit the data and bar code type



    7. Built-in 1000mAh rechargeable lithium-ion battery supplies 24hrs working time and it can be fully recharged for 4hrs, standby time up to 36 hours



    8. Compatible Operating Systems: Microsoft Windows XP/7/8/10, Mobile6/Wince, Google Android 4.0 Above, Apple iOS 9, Mac OS-X, works with computer, smartphone, tablet and mobile PDA



    Size Wireless&Wired
    barcode scanner(bluetooth)
    Weight Approx. 109g
    CPU ARM Cortex™-M3, 32-bit
    Light source Visible Red light 632nm LED
    Scanning speed 500 scans / sec
    Scanning angle Pitch Angle 5°~60° (±5°)
    Skew Tolerance 5°~60° (±5°)
    Scanning distance 500mm@20mil/0.5mm, PCS90%
    Print contrast PCS45%@4mil/0.1mm
    Precision 4mil/0.1mm@PCS90%
    Scanning width ≤ 110 mm/pcs 0.9
    Decoding capability Code 39, Full ASCII Code 39, Code 32, Code 128, Code 93, Code 11, Codabar/NW7,All UPC/EAN/JAN code (EAN-13, EAN-8, UPC-A, UPC-E, EAN-128), Interleave 2 of 5, STD 2 of 5, Industrial 2 of 5, matrix 2 of 5, Chinese Postage Code, IATA, MSI/PLESSY, Italian Pharmacy Code, Industrial 2 of 5, BC-412
    Interface support K/B,RS232,USB
