Place of Origin: | China |
Brand Name: | symcode |
Certification: | CE / RoHS / FCC |
Model Number: | MJ-4209 |
Minimum Order Quantity: | 1pcs |
---|---|
Packaging Details: | Carton box |
Delivery Time: | Sample order:1-3 days / Bulk order:7-15days |
Payment Terms: | T/T, Western Union, D/P, L/C, D/A, L/C |
Supply Ability: | 50,000pcs per month |
Reading Mode: | 650-670nm(1D Laser ) | Interface: | RS232, USB , PS2 |
---|---|---|---|
Reading Preciseness: | 3.4mil | Safety Performance: | CE FCC ROHS IP54 |
AngleTolerance: | Skew ±60°; Roll ±42° | Scan Rate: | 100 Scans/second |
Scan Scope: | 10mm-255mm | Bit Error Rate: | 1/3million |
Dimension: | 150mm*49.2mm*65mm | Color: | Black White |
High Light: | retail barcode scanner,shop barcode scanner |
Factory supermarket 1D bar code laser reader
handheld wired USB barcode scanner
Features:
1. Decode Capability: Code11, Code39, Code93, Code32, Code128, Coda Bar, UPC-A, UPC-E, EAN-8, EAN-13, JAN.EAN/UPC Add-on2/5 MSI/Plessey, Telepen and China Postal Code,Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, more for Request.
Optional stand for hands-free scanning. Automatic scanning whether it is used in hands or with the optional hands free stand.

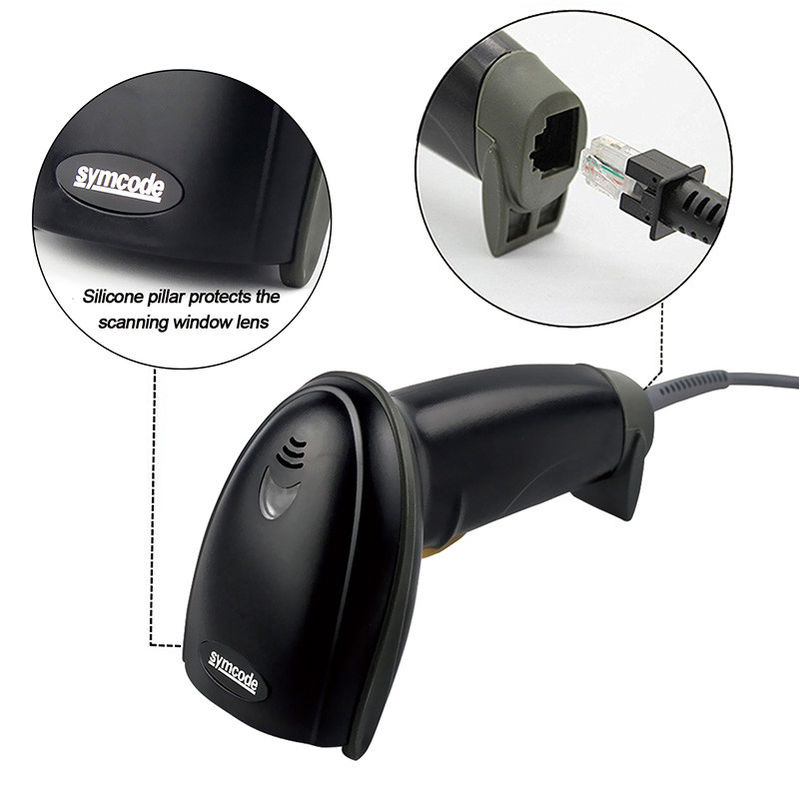

2. DURABLE CONSTRUCTION DESIGN: Manufactured with high quality materials, the VT10H barcode reader offers ensured longevity and durability without losing the sharpness of the laser beam. With a robust and resistant housing plus a rubber bezel in the front, it is capable of withstanding multiple bumps. This makes it suitable for all kinds of harsh environments.
3. CUTTING EDGE LASER TECHNOLOGY: This handheld laser scanner is equipped with a thin, sharp, class 1 laser aimer for accurate barcode aiming. With the improved up to date decode algorithm, besides the precise barcode capture from low contrast to on-screen barcodes, VT10H delivers reliable and consistent performance regardless the lighting conditions.
4. FAST & ACCURATE PERFORMANCE: Fabricated according to the production line’s needs, this auto-adaptive high-speed scanning tool with a highly efficient data transmission interface provides the capability of reading 3Mil barcodes and mobile barcodes.
Type | Handheld Laser Bar code Scanner |
Light Source | 650-670nm(Visible Laser ) |
Scan Rate | 100 scans/second |
Reading preciseness | 0.10mm(4mil) |
Interface | PS2 ,Rs232,USB and more |
Reading Distance | 2.5-600mm(100%UPC/EAN) |
Barcode types | EAN-8/13, UPC-A/E,code 39/93/128,EAN128,Codabar, industrial 2 of 5, interleave 2 of 5.matrix 2 of 5, MSI, |
scan scope | 10mm-250mm |
Scanning angle | inclination angle 45˚,Elevation angle 60˚ |
Bit error rate | 1/3million |
Power voltage | 5V |
Safety performance | CE & Rohs Accord with national level 2laser safety standards |

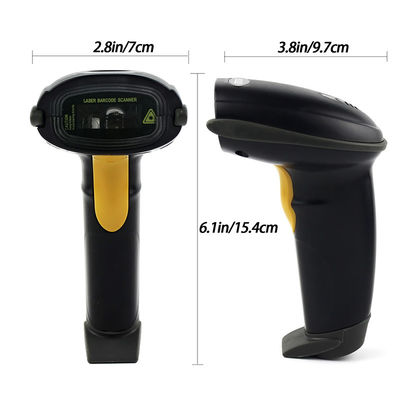

Dimension | 150mm*50mm*65mm |
Weight | 129g |
Specification:
Color : Black
Dimension: about 16.6 x 9.5 x 6.8 cm
Power supply: 5VDC ± 5%
Operating current: 100 mA ( 40 mA Standby )
Rated reading distance: 2.5mm-600mm
Scanning width: 18 cm
Prompting mode: buzzer or LED indicator
Scanning mode: button, auto sensing, automatic continuous scanning
Button life: 10 million times
Laser life: 10,000 hours
Communication Interface : Keyboard USB
