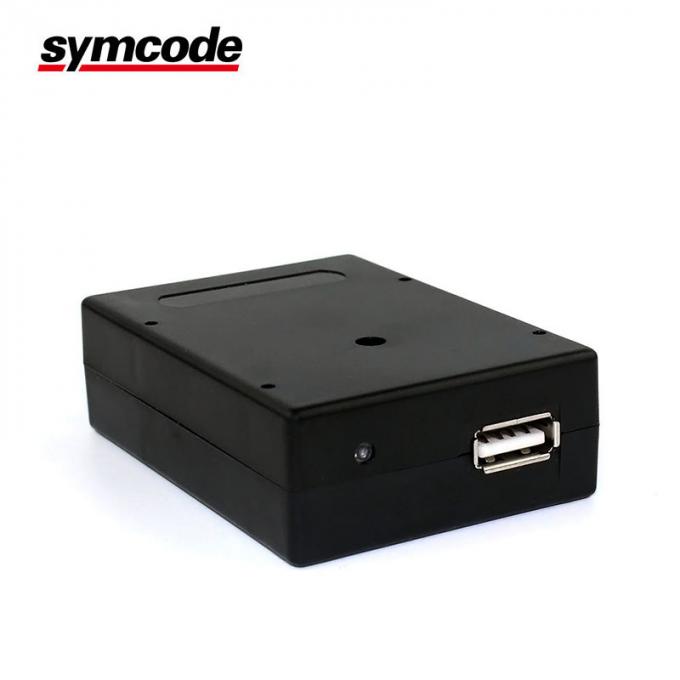

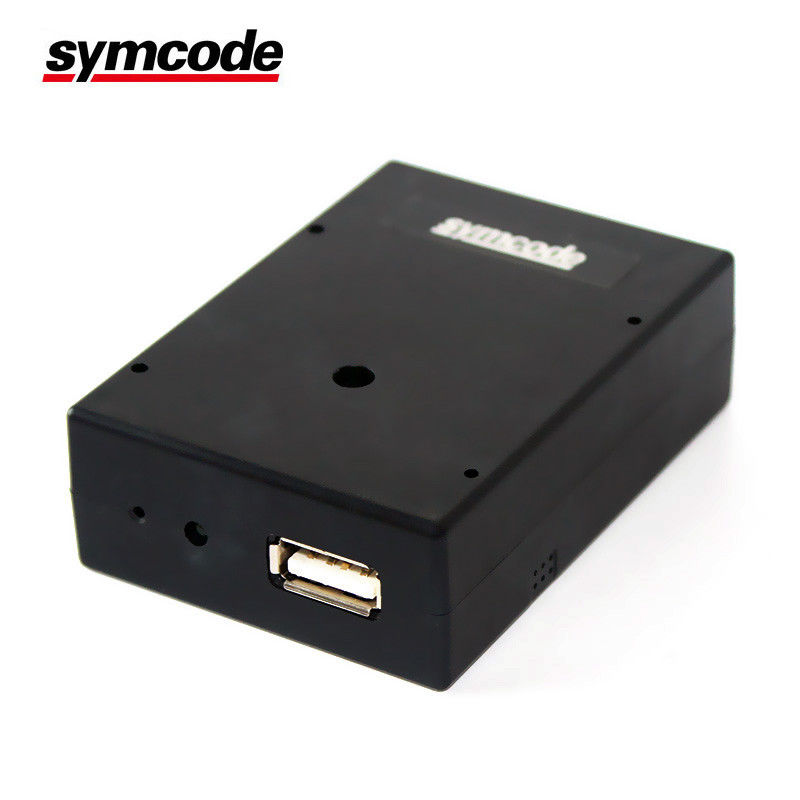

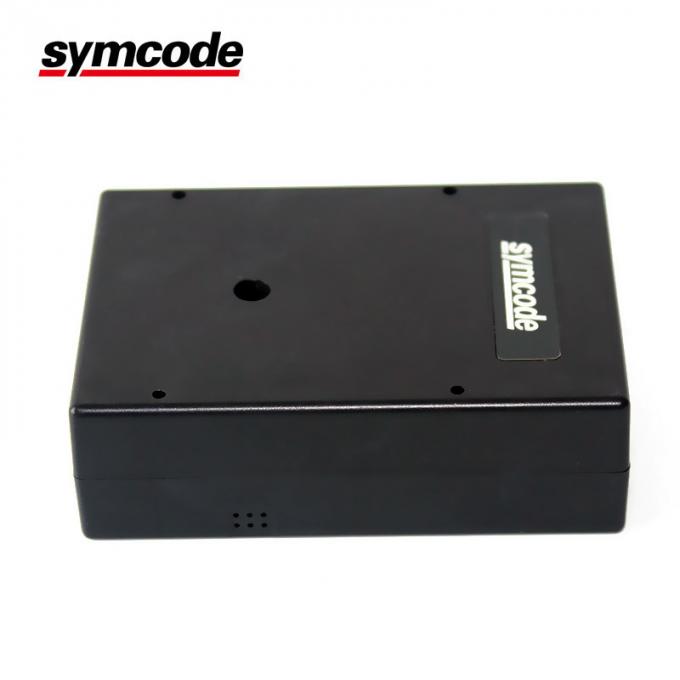

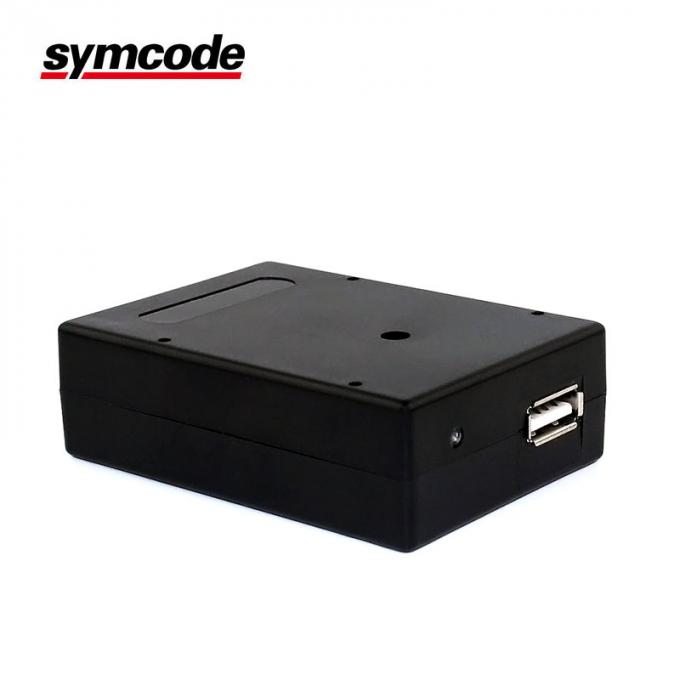

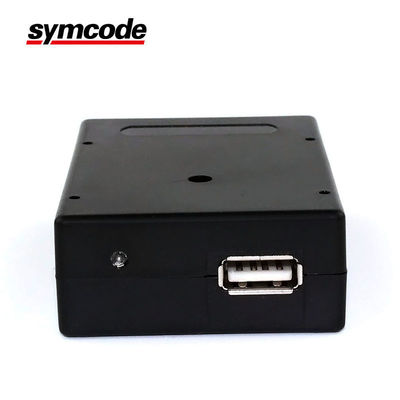

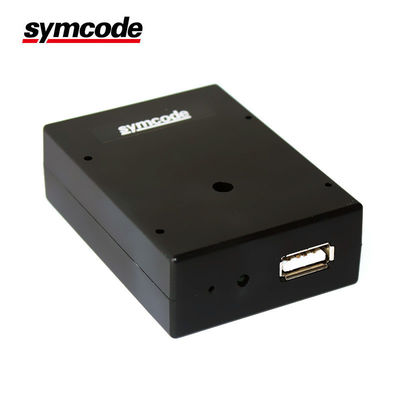

Industrial 1D Laser Scanner / Barcode Scanner Module Elevation Angle 60˚

Product Details:

Place of Origin:	China
Brand Name:	symcode
Certification:	CE / RoHS / FCC
Model Number:	MJ-2090

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	Carton box
Delivery Time:	Sample order:1-3 days / Bulk order:7-15days
Payment Terms:	T/T, Western Union, D/P, D/A, L/C
Supply Ability:	50,000pcs per month

Contact Now

Detailed Product Description

Reading Mode:	Laser	Decode:	1D Bar Code
Interface:	RS232 &USB&KB	Scan Rate::	120 Scans/second
Barcode types: :	2D CODE	Color:	Black White
EMC:	"FCC Part 15 Class B\European Union EMC Directive "	Certificate:	CE FCC ROHS IP54
Print Contrast::	30%min	Reading preciseness:	5mil
Scan Angle:	"Roll：0-360° Pitch：±65° Yaw：±60°"	Mode:	Auto Sense & Trigger
High Light:	desktop barcode scanner , omni directional scanner

Industrial 1D laser Fixed Mount Bar Code Scanner

Module Fixed Barcode Scanner

Mechanical/Electrical

Voltage: 5V

Current Operation: 68mA; Idle 48mA

Scanner Material: Eco-friendly, ABS+Rubber

Environment

Operation Temperature: -20°-45°

Storage Temperature: -20°-45°

Humidity: 5%-85%

Light Intensity: Daylight, 4000Lux

Decode Error Rate: less than 1/8 million

Print Contrast Signal: ≥30°

Scan Angel: Yaw(Skew) 45° Pitch 60°

Safety: Full quakeproof, dustproof, antiknock-design and EMI Shielding

Type	Handheld Laser Bar code Scanner
Light Source	650-670nm(Visible Laser )
Scan Rate	100 scans/second
Reading preciseness	0.10mm(4mil)
Interface	PS2 ,Rs232,USB and more
Reading Distance	2.5-600mm(100%UPC/EAN)
Barcode types	EAN-8/13, UPC-A/E,code 39/93/128,EAN128,Codabar, industrial 2 of 5, interleave 2 of 5.matrix 2 of 5, MSI,
scan scope	10mm-250mm
Scanning angle	inclination angle 45˚,Elevation angle 60˚
Bit error rate	1/3million
Power voltage	5V
Safety performance	CE & Rohs Accord with national level 2laser safety standards
Dimension	150mm50mm65mm
Weight	129g
